    KLY HP500 3D tank cleaning heads, reactor Cleaning Nozzle
    KLY HP500 3D tank cleaning heads, reactor Cleaning Nozzle
    Send Inquire

    KLY HP500 3D tank cleaning heads



    ModelHP500 3D tank cleaning head
    Material304SS
    Connection3/4"BSPP
    Flow rate 38-260 L/min
    Recommanded pressure150-500 bar
    Max. pressure 500 bar
    Temperature95°
    Max. tank diameter1-6 m
    Applicationrinsing and cleaning of tanks or reactor
    FilterationLine strainer with a mesh size of 0,3 mm/50 mesh
    Weight 14.5 KG



    Common Application of reactor cleaning head:
    HP500 high pressure tank cleaning head is suitable for three dimension cleaning of containers, reactors, autoclaves,tank ,

    such as chemical, petrochemical, synthetic fiber, paper and food industry, chemical raw materials, Coating industry and occasions

    requiring ultra-high pressure cleaning.
    HP-500 high pressure 3D tank cleaning heads can effectively clean boiler deposits, Coke, polymer, PVC resin or residue that is difficult to remove.

    Working principle:
    The high-pressure cleaner drives the transmission mechanism to rotate through the principle of reaction force, and passes through reducer regulate

    rotation speed, realize revolution and rotation through the transmission mechanism according to the set trajectory,
    So as to form a 360-degree spray pattern to achieve complete tank coverage.



    Design feature:

    • It adopts dynamic balance design to maintain stable rotation and swing under high pressure.

    • The speed and cleaning cycle can be adjusted steplessly, with a long service life.

    • Cleaning trajectory is uniform and dense, ensuring efficient and high-quality cleaning.

    • Unique nozzle structure design makes high-pressure water jet with greater impact force.

    • Powerful high-pressure water jet can efficiently clean stubborn dirt.

    • No need for people to enter the restricted space, greatly reducing labor intensity, improving the working environment, and avoiding safety hazards.

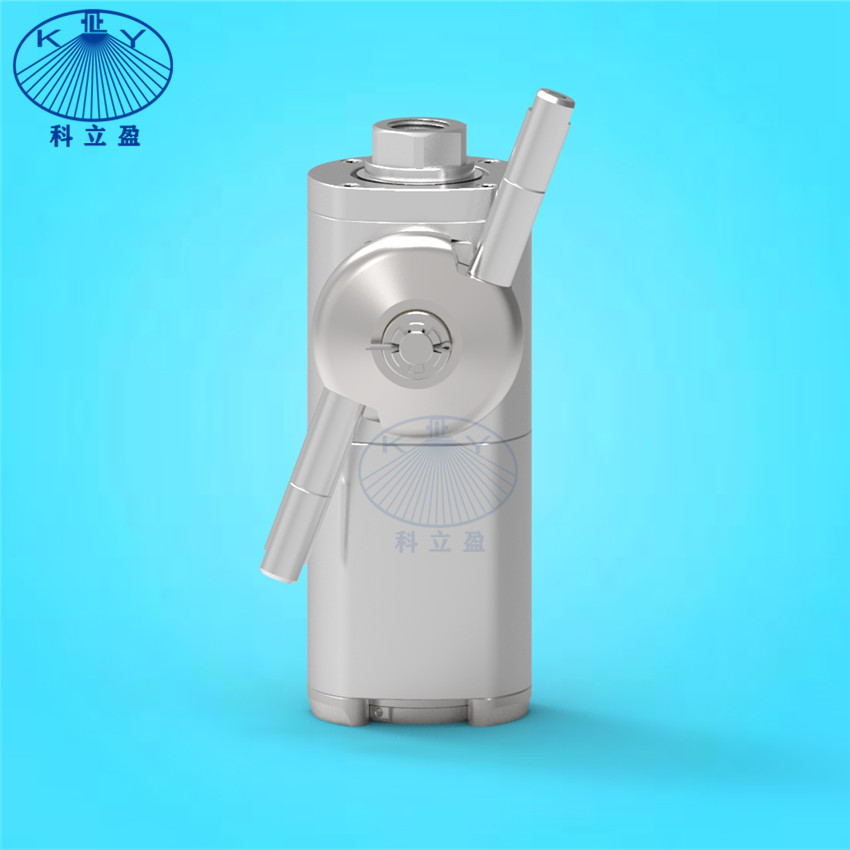

    Product photo:

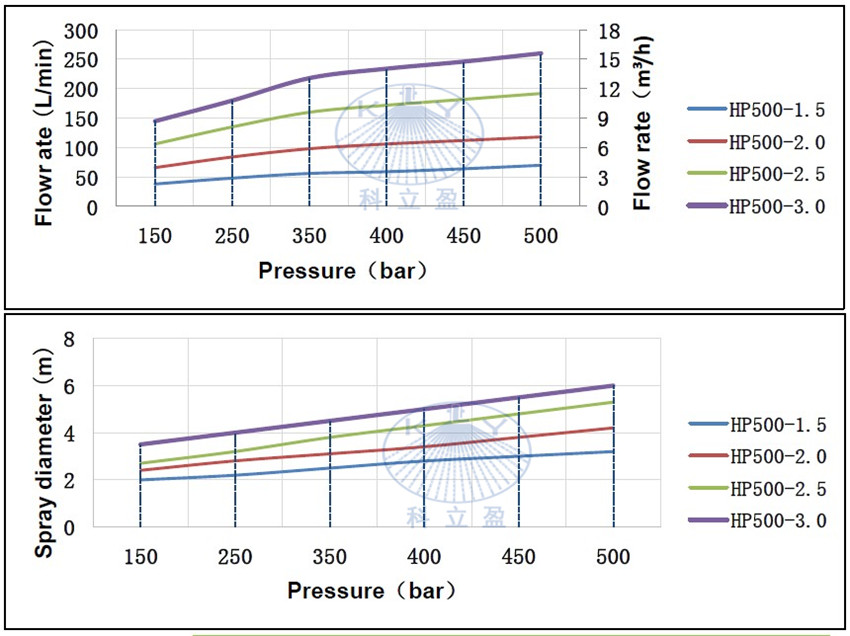

    Performance data of reactor cleaning nozzle:

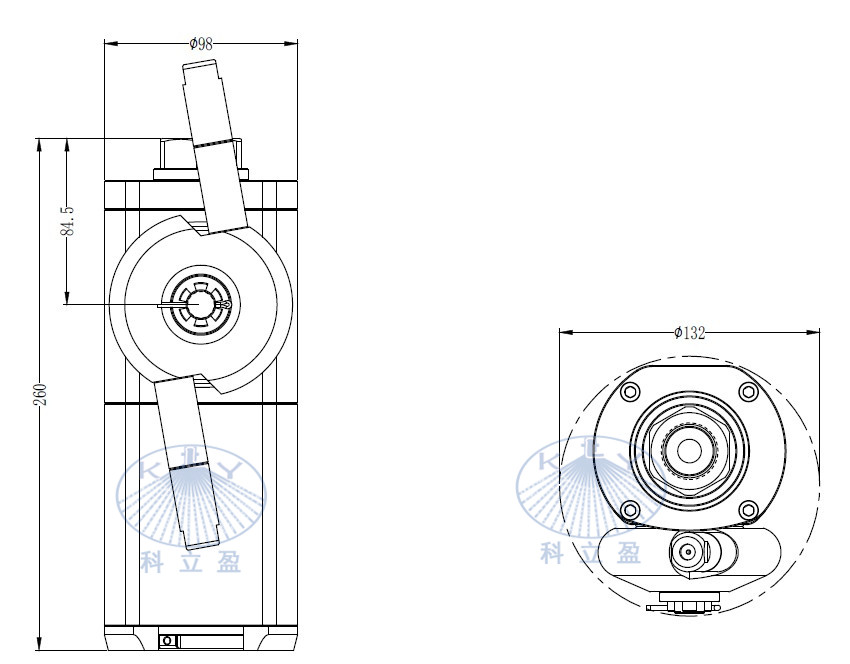

    Dimension:

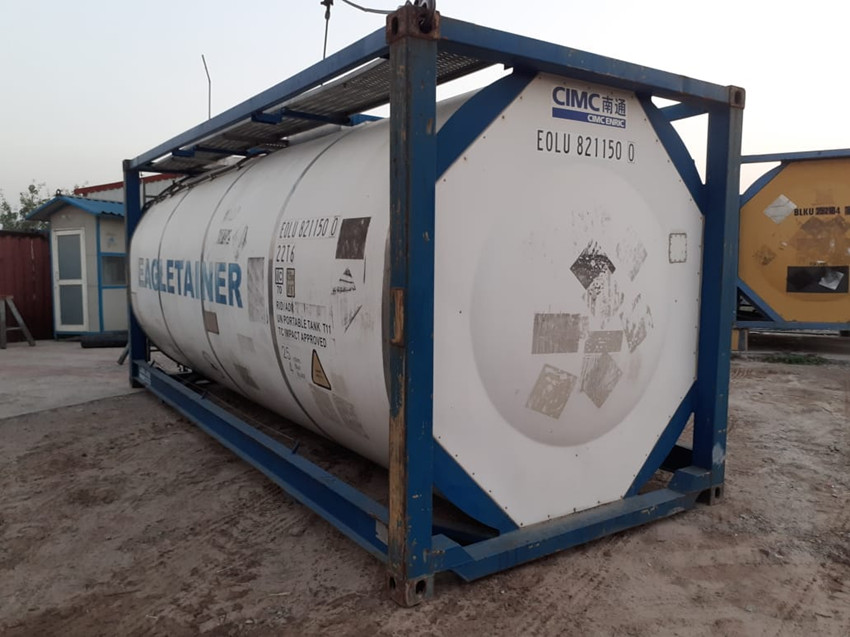

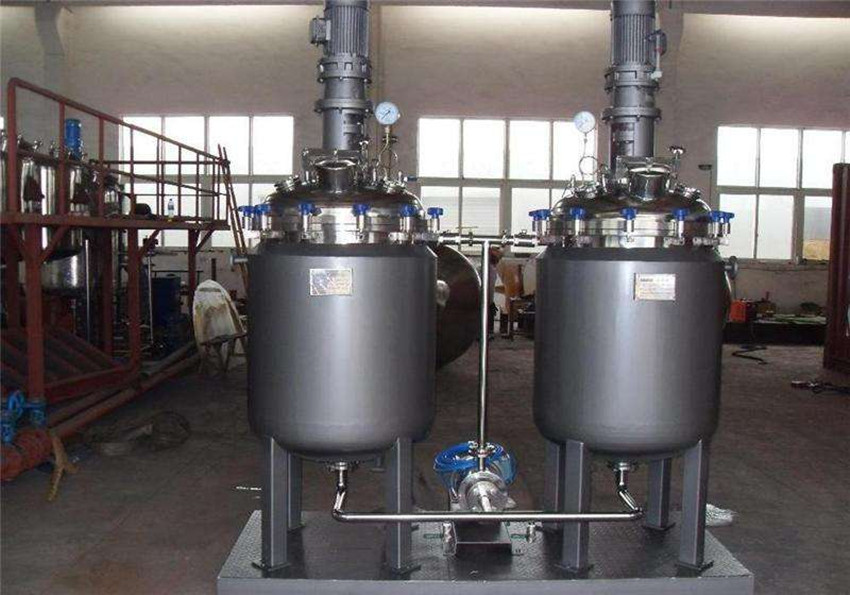

    Application of tank cleaning heads:











    timg (1).jpg
