    CC5 high pressure Self-propelled Tank Cleaner
    CC5 high pressure Self-propelled Tank Cleaner
    Send Inquire

    CC5 Self-propelled Tank Cleaner

    High pressure cleaning head



    ModelHigh pressure cleaning head
    Material304SS (316SS on request)
    Connection1/2" thread
    Flow rate 20-100 L/min
    Recommanded pressure50-150 bar
    Temperature95°
    Max. tank diameter1-3.5m
    Applicationrinsing and cleaning of trash can
    Weight3KG
    Min. tank openings88mm
    FilterationLine strainer with a mesh size of 0,3 mm/50 mesh



    Common application

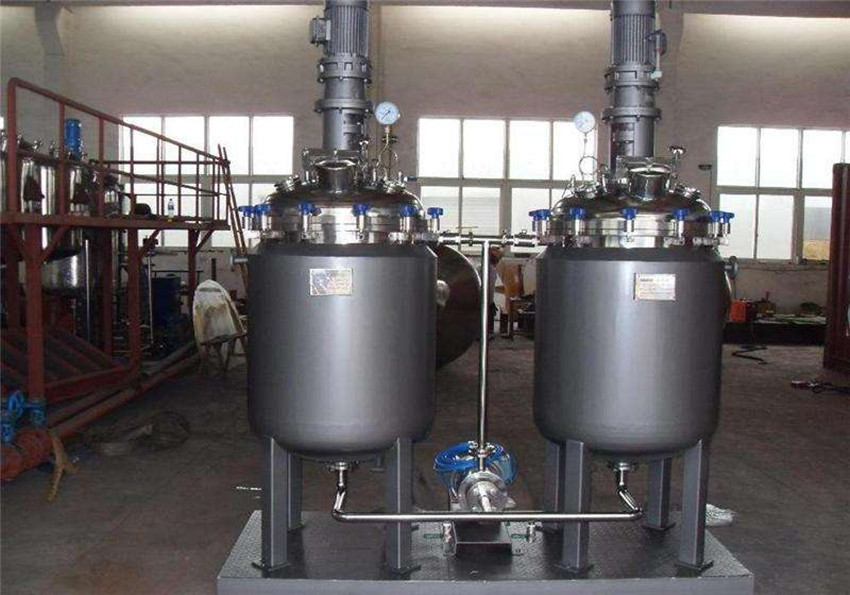

    KLY CC5 cleaning head is suitable for reactor, chemical industry, chemistry, environmental protection, automobile, raw material,
    coating industry and occasions that require pressure cleaning.

    Working principle:

    KLY CC5 high pressure rotating nozzle is driven by cleaning fluid, impeller drives the internal deceleration mechanism, and the transmission mechanism runs according to the set trajectory to form a 270° spray pattern.

    Design features :
    Optimized structure design makes the water jet with greater impact force.
    Excellent sealing design, leakage of water is less than 3%, thereby saving cleaning fluid.



    Product photo:

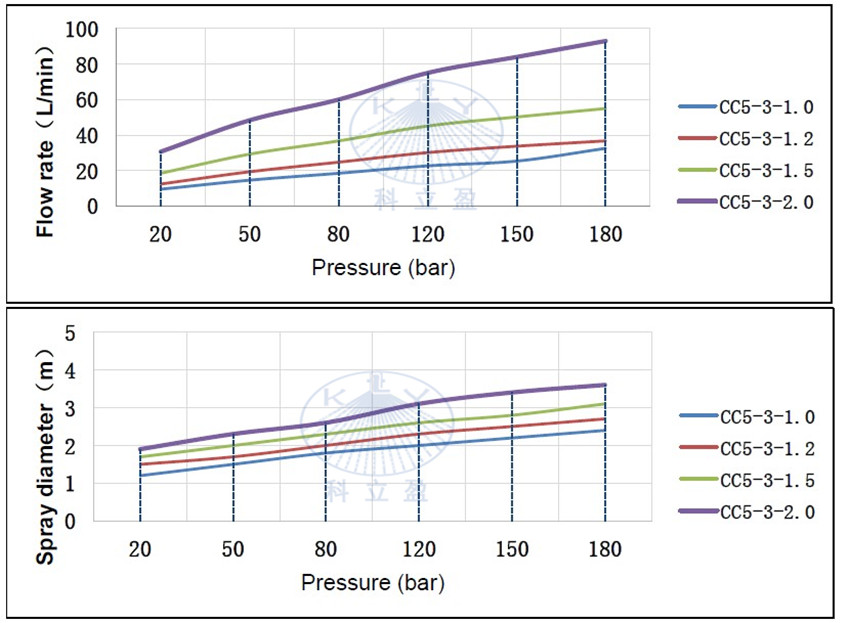

    Performance data:

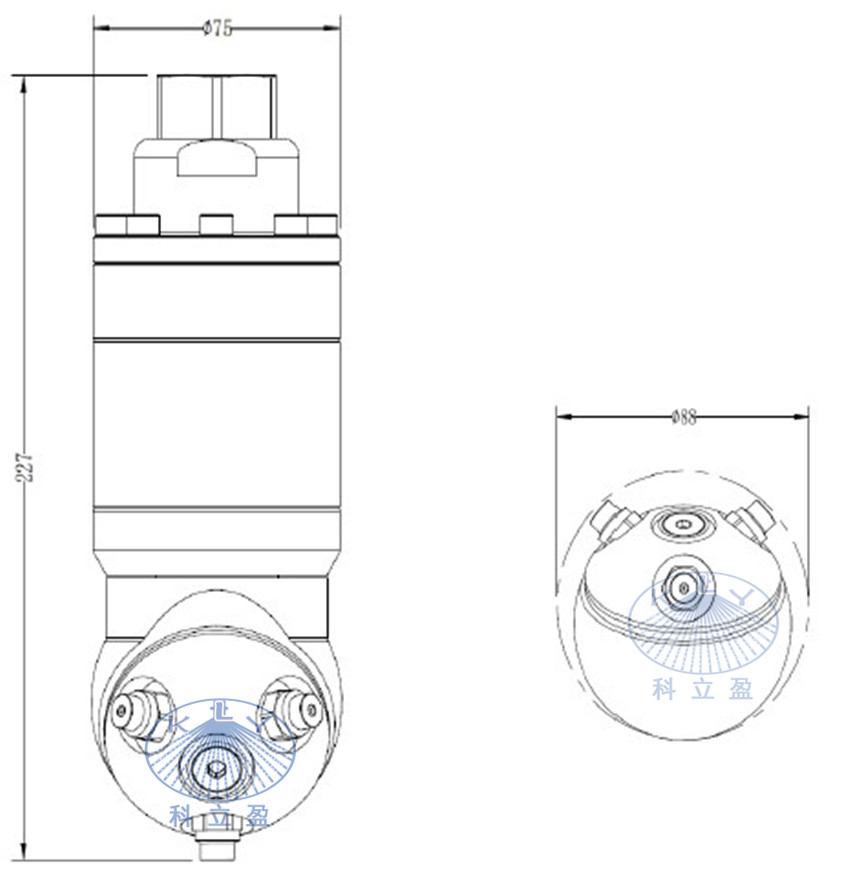

    Dimension:




    Application:
