    KLY Twin position 200L barrel and drum cleaning machine
    KLY Twin position 200L barrel and drum cleaning machine
    Send Inquire

    KLY Twin position 200L barrel and drum cleaning machine



    Design features :

    This complete 200L barrel washer utilizes our rotary impingement technology designed to blast residue from the barrel & drum washer interior, in a precise, global indexing pattern.

    Our 100% guaranteed cleaning technology ensures the entire barrel is thoroughly cleaned in the most efficient manner, utilizing the least amount of resources including: time, energy, and cleaning fluid.

    The barrel washer comes equipped with everything you need to set up a barrel cleaning system.

    It comes equipped with low pressure or high pressure cleaning nozzle according to the application.



    Cleaning technology description
    Operation demonstration: align the cleaning nozzle and put it into the bucket to be cleaned, there will be fixed jackets on both sides to fix the bucketbody, the cleaning cycel time is 2-4 minutes (the time can be adjusted according to the situation), and operating pressure can be adjusted from 3-150 bar, and two modes can be adjusted according to the cleaning situation:
    1. Low pressure cleaning modes, 3-20 bar pressure.
    2. High-pressure cleaning modes, 80-150 bar pressure
    3. Hot water detergent low pressure mode, this mode is aimed at oily barrels, first spray with detergent and then wash with 10-20 bar pressure.
    4. Hot water detergent high pressure mode, this mode is aimed at petrolatum barrels, first spray with detergent and then clean with 150 bar hot water and clean water, liquid temperature is 40-50 degrees



    Benefits
    Fast: Clean any barrel in 2-4 minutes
    Clean the entire drum, including the top and corners
    Powerful: Clean a variety of residues
    Affordable: A fraction of the cost of CIP tank cleaning systems



    Residues:
    Any and all including:
    Paints, adhesives, chemicals
    Petroleum products
    Food and beverages products and ingredients
    Pharmaceutical products and ingredients
    Personal care products and ingredients products
    And many more.

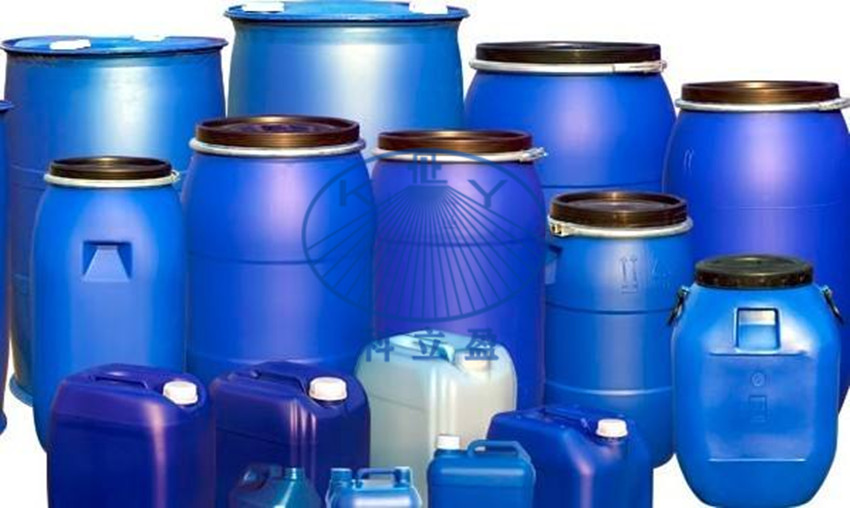

    Common application:

    In all industries:

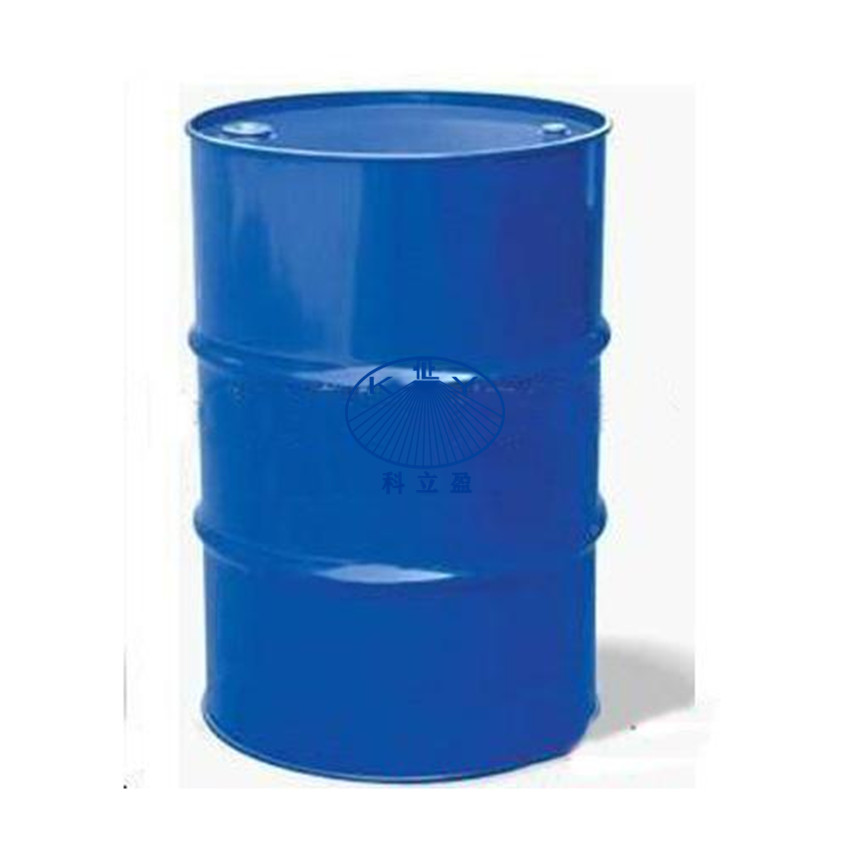

    • barrel

    • drum

    • vats

    • buckets

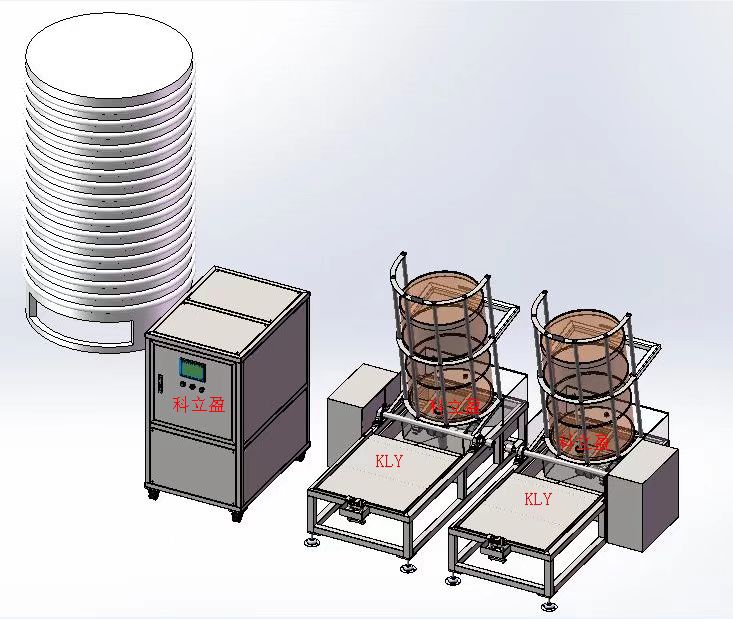

    Photo Show :

    200L drum washer.jpg

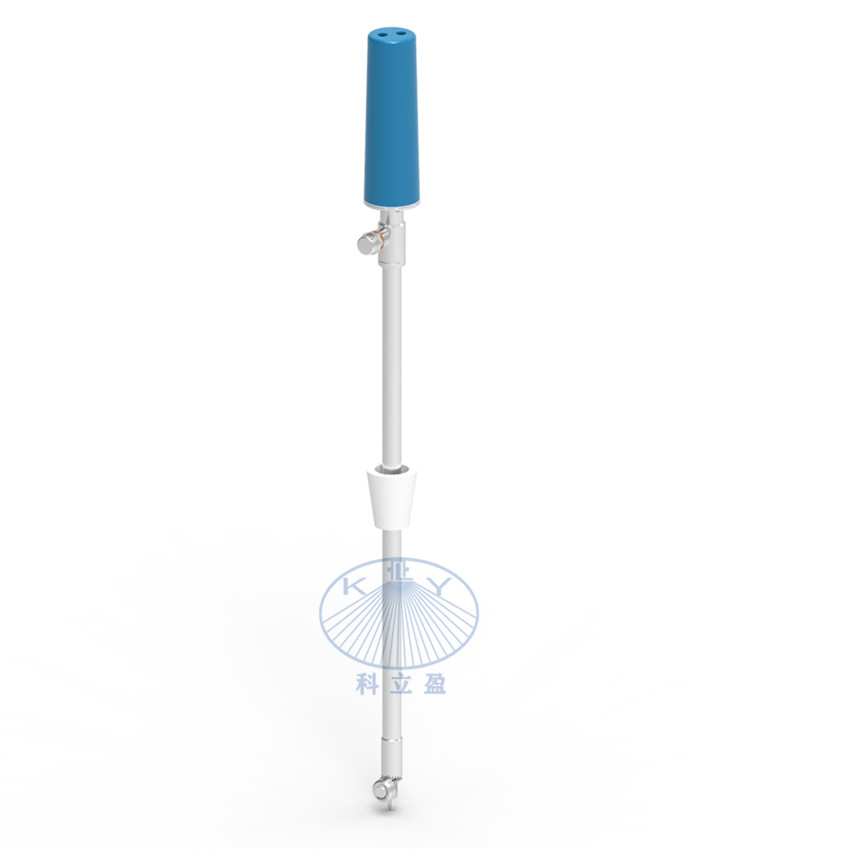

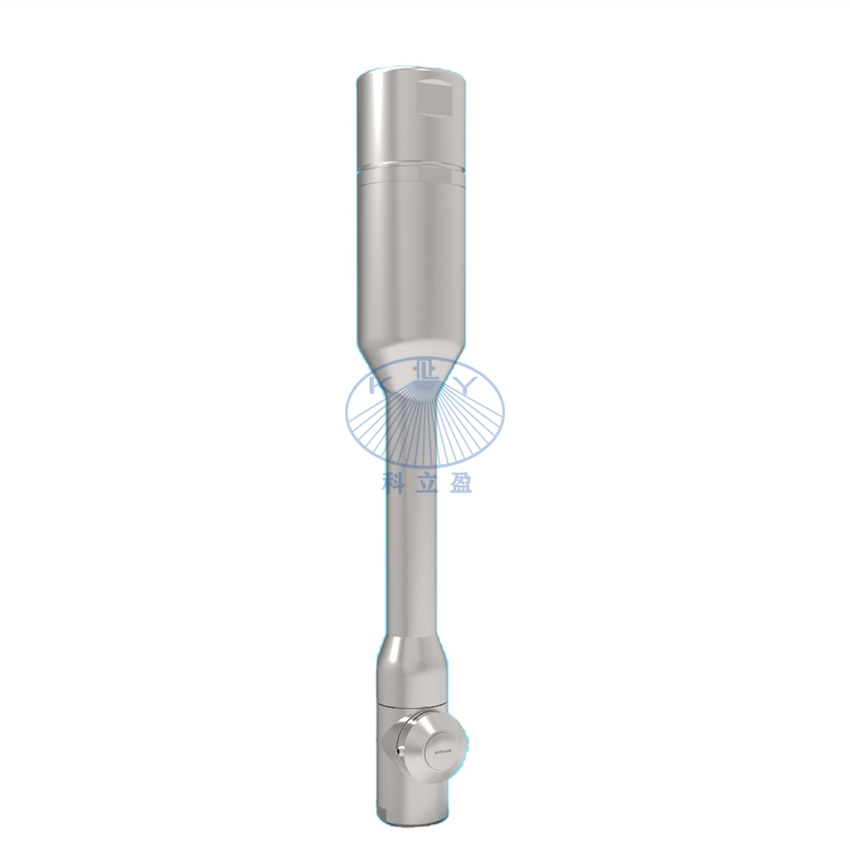

     Matching Rotary washing jet head:

    DG2 tank cleaning nozzles.png


    high pressure tank cleaning nozzle (2).jpg

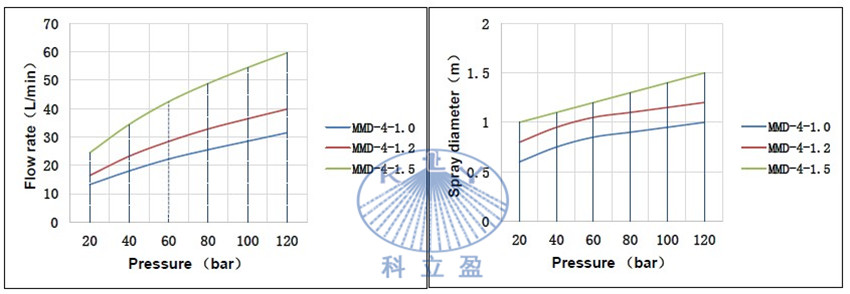

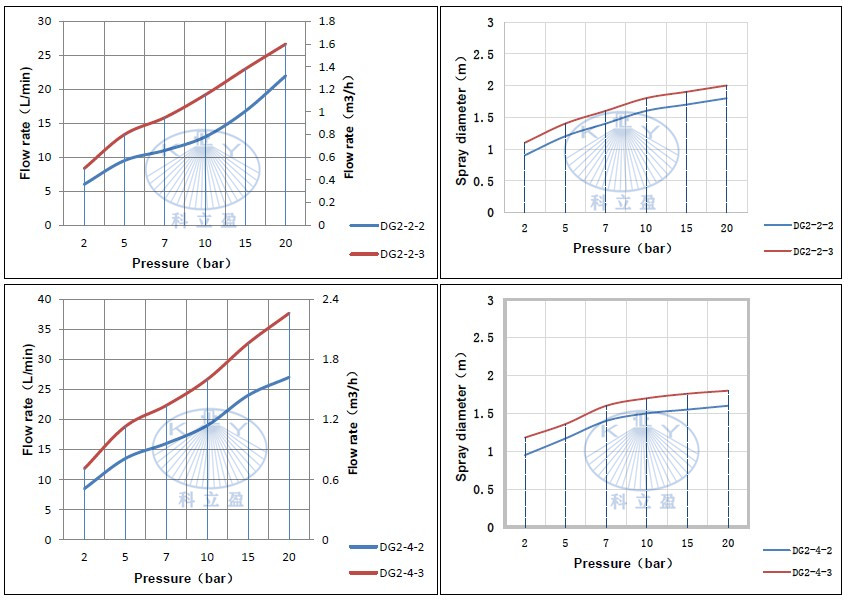

    Performance data of barrel washing nozzle:



     DG2 rotating jet heads.JPG

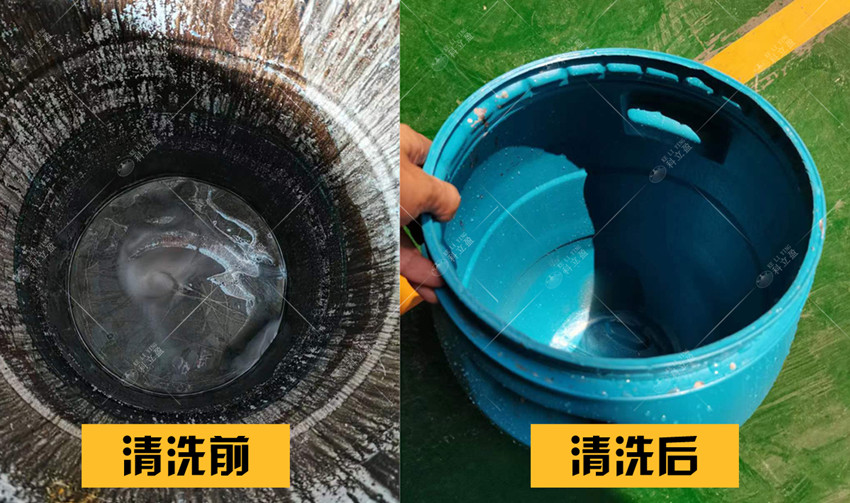

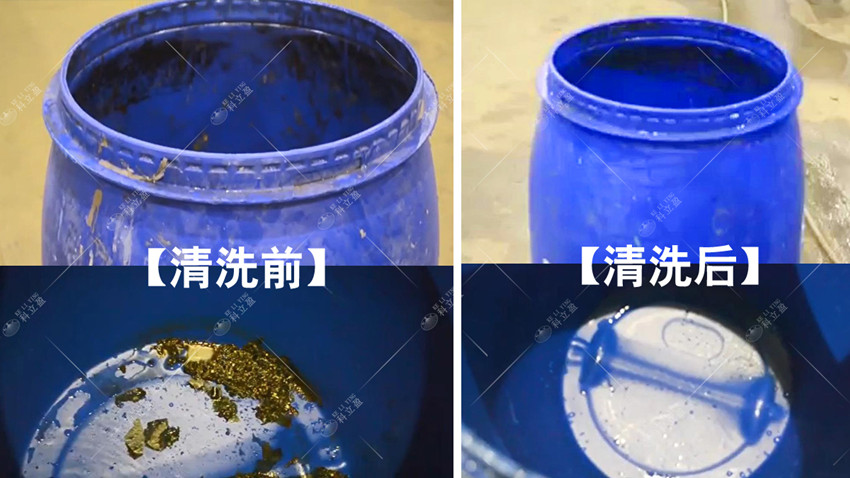

    Cleaning effect of KLY barrel & drum cleaning machine:

    200L drum cleaning.jpg


                            Before cleaning                                           After cleaning

    Application:



    It is the ideal cleaning equipment for barrel washing.

    In the process of cleaning, the 3D rotating high-pressure tank washer not only meets the requirements of thorough cleaning, but also reduces the consumption of resources.

    Safety, eco-friendly and helps for the sustainable development.



    timg (10).jpg



     timg (8).jpg
