The KLY Type DG15 automated tank cleaning machine provides 360° impact indexed coverage for the cleaning of the inside of tanks and process vessels.

Item No. Nozzle diameter (mm)

DG15-6 6MM

DG15-6.5

 6.5MM

DG15-8 8MM

Specifications Summary

Pressure Range:

0-300 PSI (21 Bar)

Flow Range:

0-205 US GPM (47 M3/hr)

Maximum Temperature:

Static : 260°F (130C)

Operational : 260°F (130°C)

Minimum Opening:

6.22″ (158 mm)

Drive Type

Integrated turbine and shaft

Materials of Construction (As Standard):

316LStainless Steel

Lubrication:

Flow-Through (Media Lubricated)

Weight:

12.1 lbs. (5.5kg)

Industries

DG15 a highly versatile machine and is applicable in most all types of tanks for process, storage, and transportation. Tank maximum diameter 15M

Operational

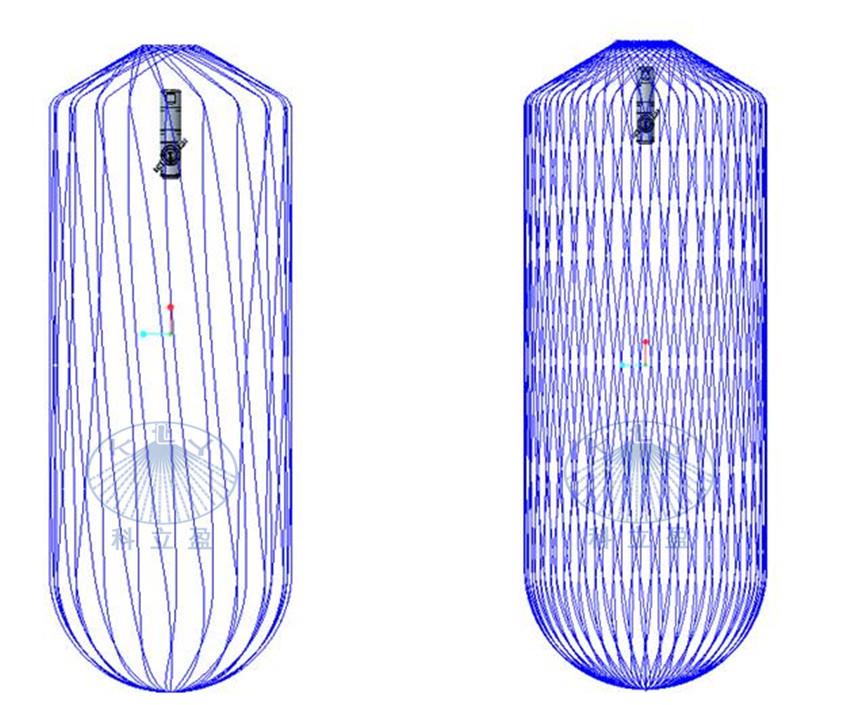

DG15 creates a pattern matrix similar to a ball of twine (see cleaning pattern simulation below. A complete pattern is established when 65 axial revolutions of the body have been completed. During the process of this pattern build out, 4 cycles (for a 2 nozzle hub) are established with each cycle increasing the density of the pattern matrix.

User Benefits

Hygienic design

High jet-stream impact

Reduced cleaning times

Reduced effluent generation

Reduced energy costs

100% self-rinsing (for specific models)

Improved capital equipment utilization

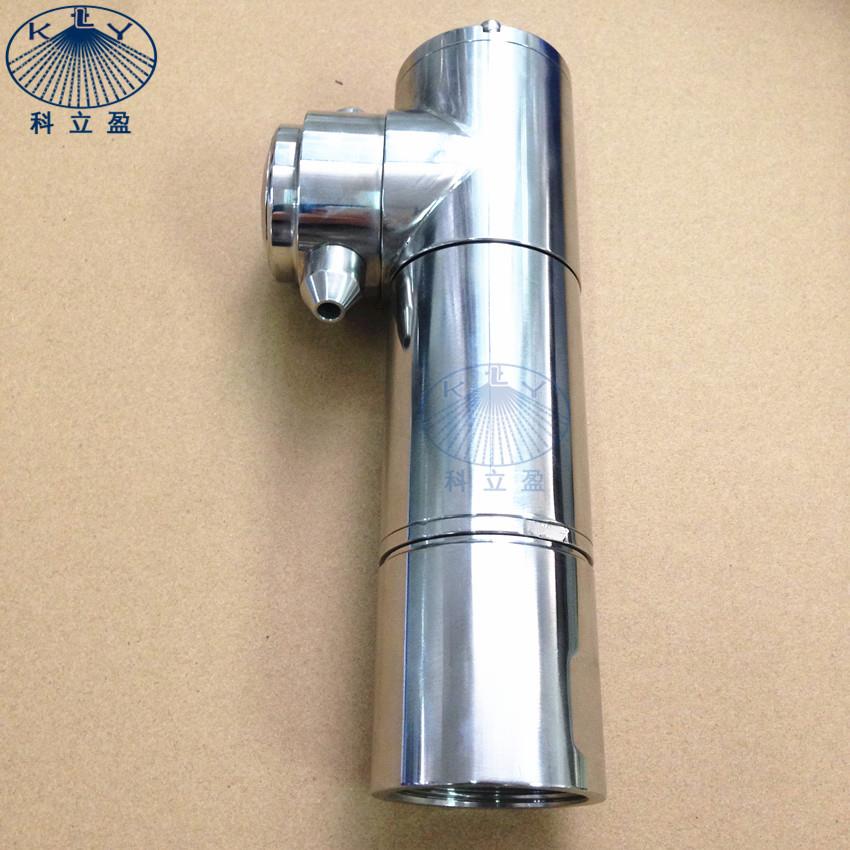

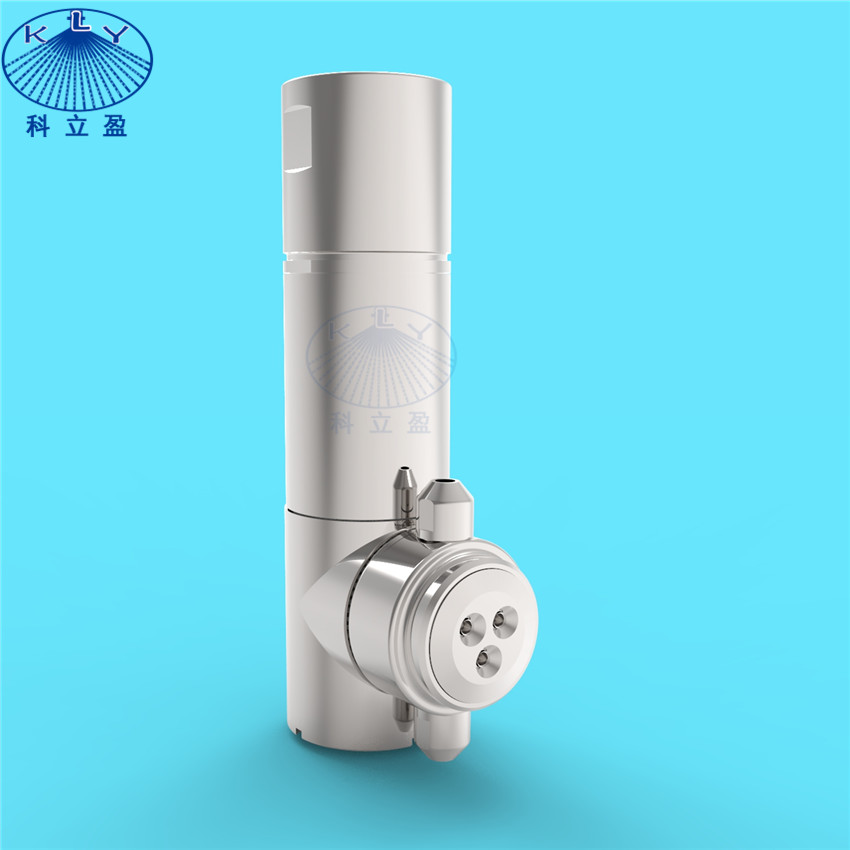

Product Photos:

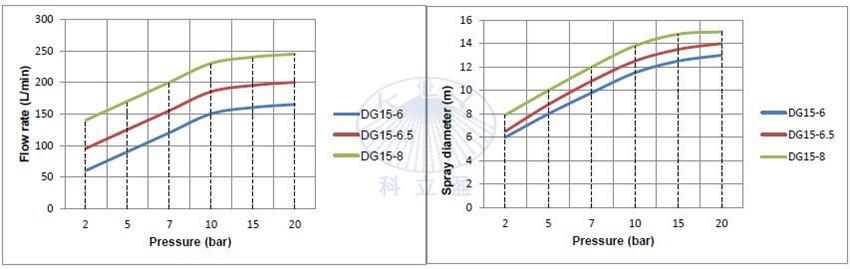

Performance data:

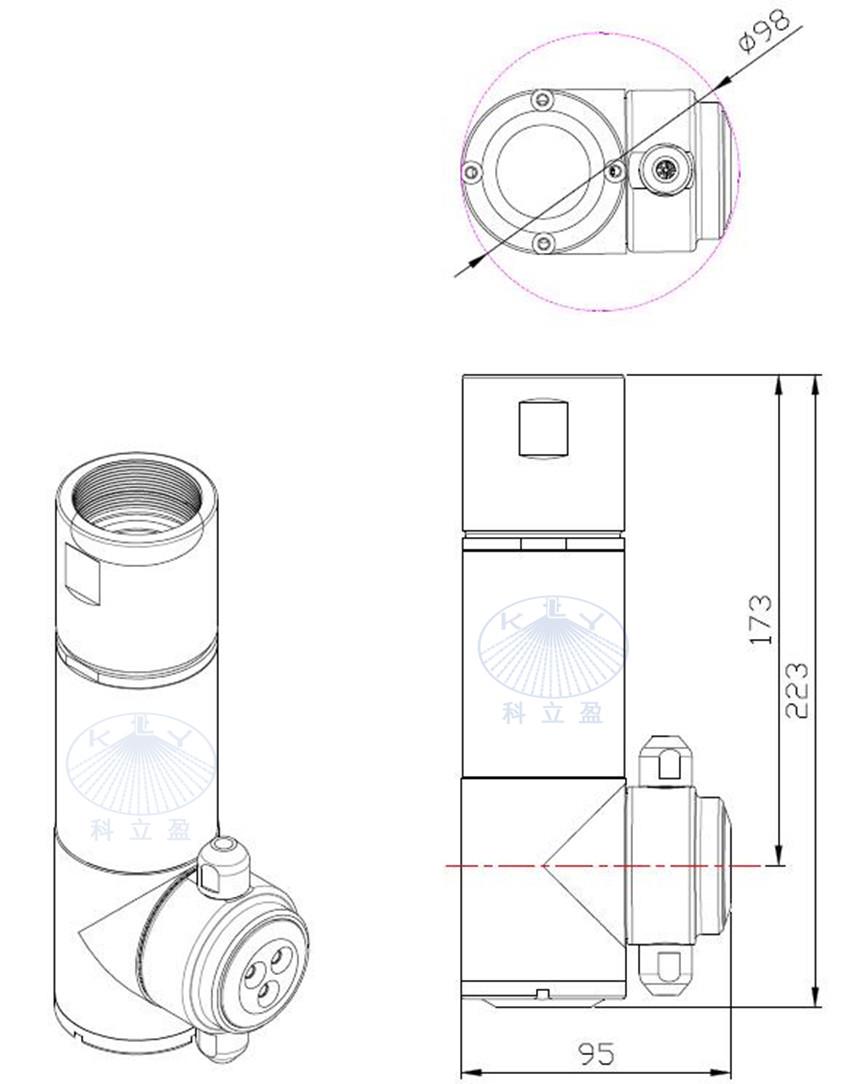

Dimensions:


Cleaning process:

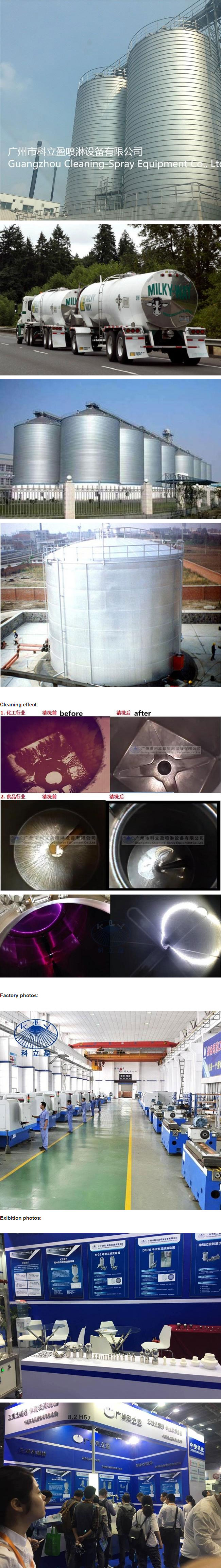

Application :
