Working of portable retractable tank cleaning machine

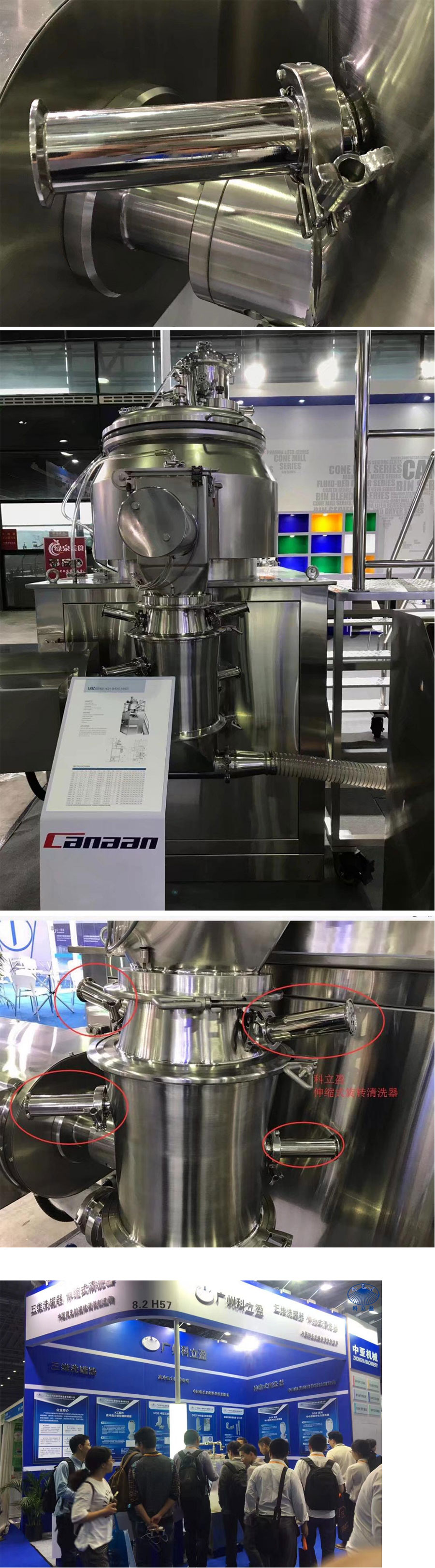

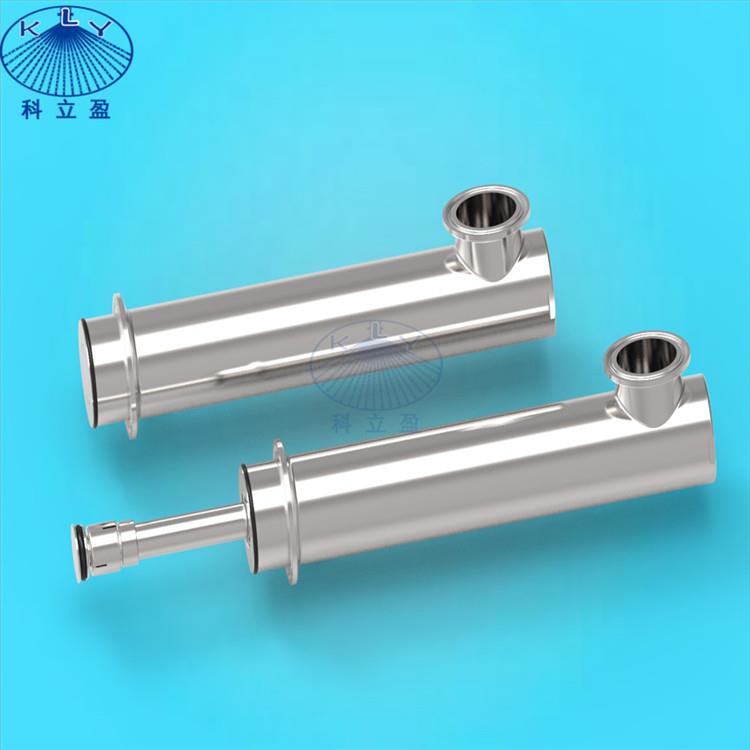

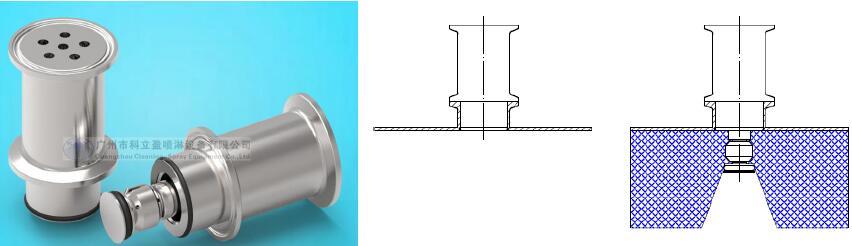

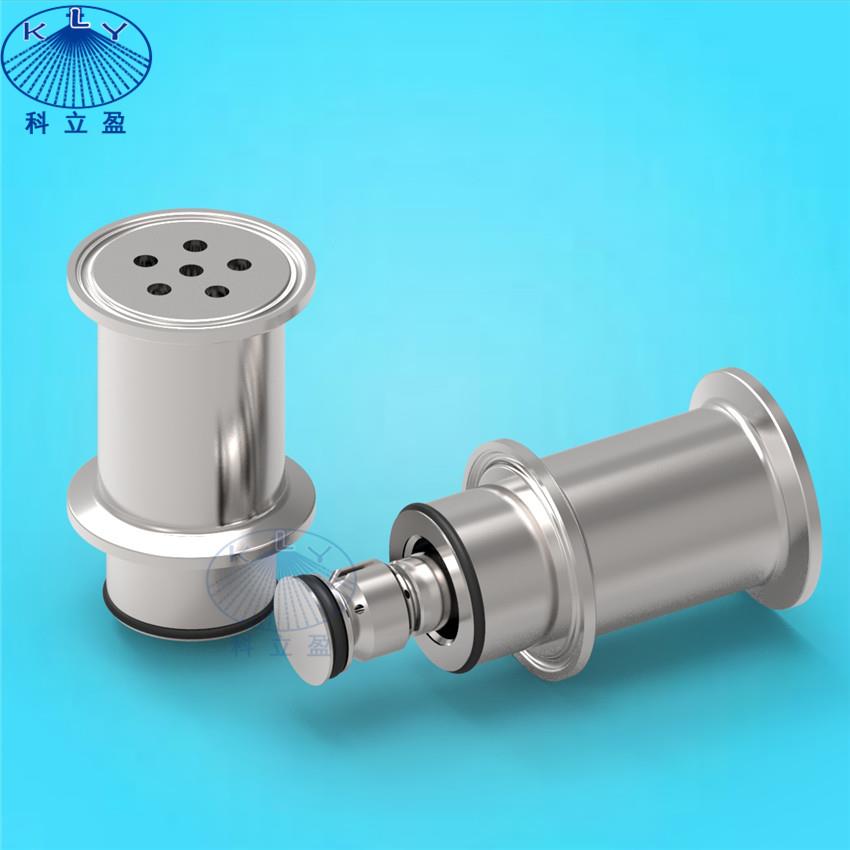

Product Photos:




Specification:

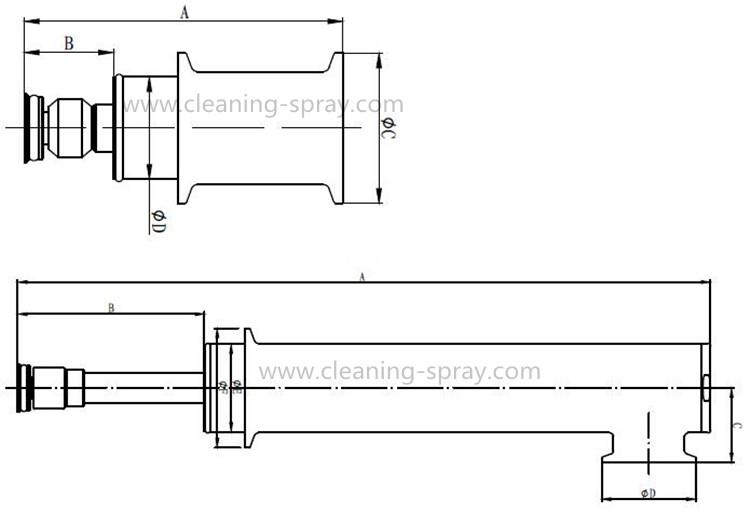

Dimension:

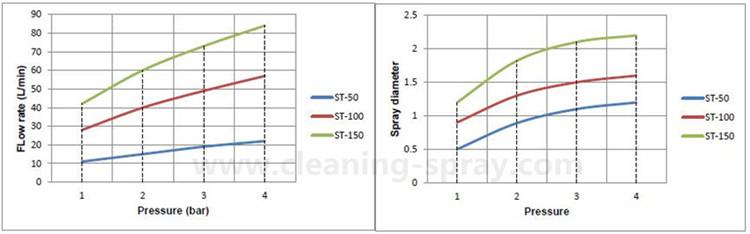

Performance data:

Working data:

Stroke (s)         50/100/150mm

Material           316LSS

Connection         Clamp

Spray pattern      320 degree

Cleaning diameter  1-3m

Pressure           2-4bar

Flow rate          30-100L/min

Features :

Automated extension and retraction Retracted position provides a smooth tank surface Hygienic, self-cleaning construction Variable flow rate reduces the risk of flooding Unique design reduces installation and cavity size of the retracted head ST models can be mounted in any orientation complies with 3A Sanitary Standards

Applications:

Mixing tanks

Process lines or ducts

Instances where the spray device needs to be removed during production
