High pressure water tank cleaning machine for IBC tote

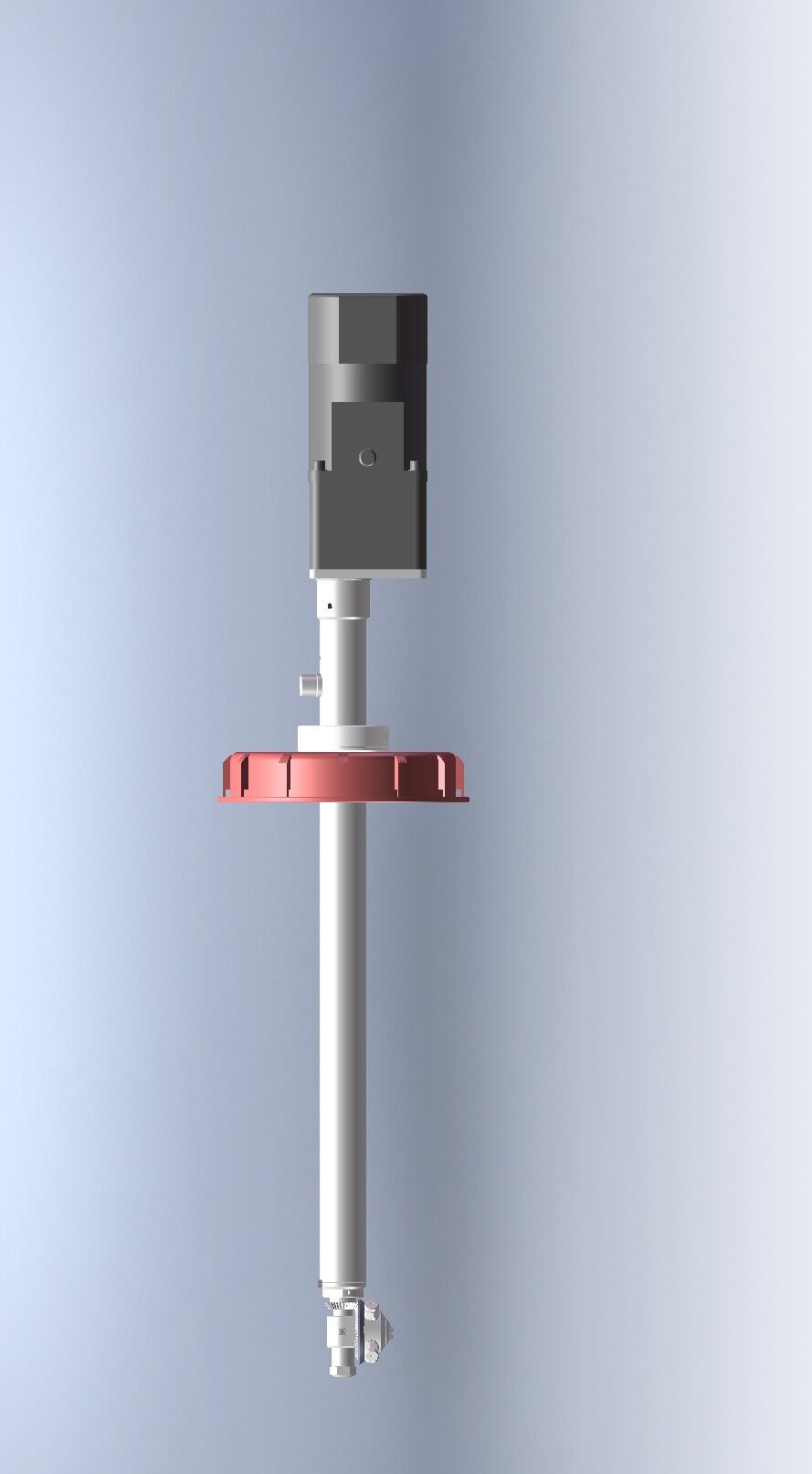

Product Photos:

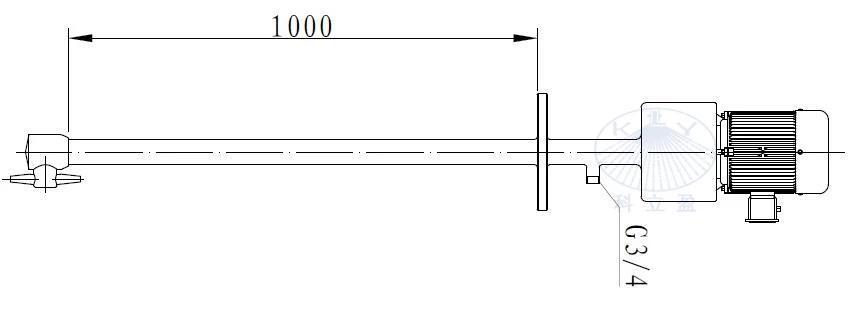

Dimension:

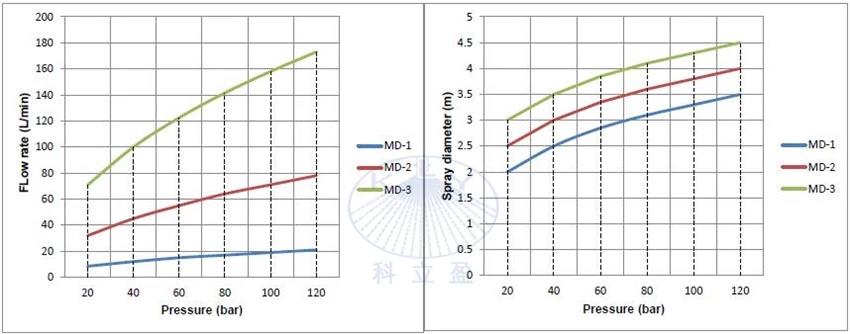

Performance data:



Working data:

Material           316LSS

Connection         Thread or Flange

Spray angle        360º

Cleaning diameter  2-3.5M

Pressure           3-150bar

Flow rate          8.5-21 L/min

Features :

Powered from electric which are located outside of the tank with only the shaft protruding inside. The cleaning works in the same way as our other motor driven heads; the jets remain intact due to the rotation of the head being slowed by the motor allowing maximum impingement on the tank/vessel surface. These motor types are capable of pressures up to 150 bar and capacities to 21 litres per minute, although this depends on the capacity of the nozzles fitted to the spray ball

Applications:

Static spray ball replacement

Heavily soiled tank surfaces

Higher pressures, lower flow
