Tank rinse nozzle china directly factory

DN series PTFE teflon tank clean spray nozzle,Driven by cleaning fluid, no external power source is required to rotate the nozzles

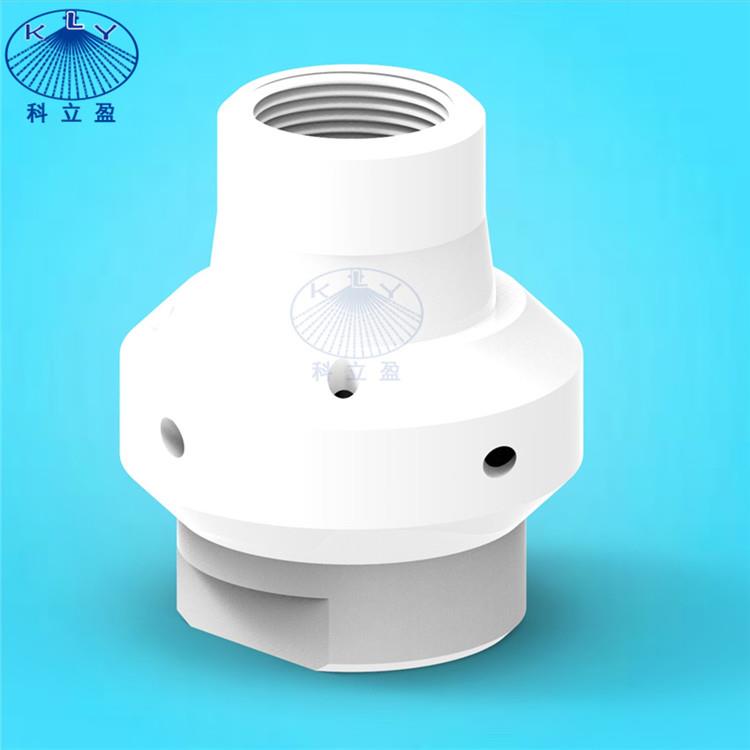

Product Photos:

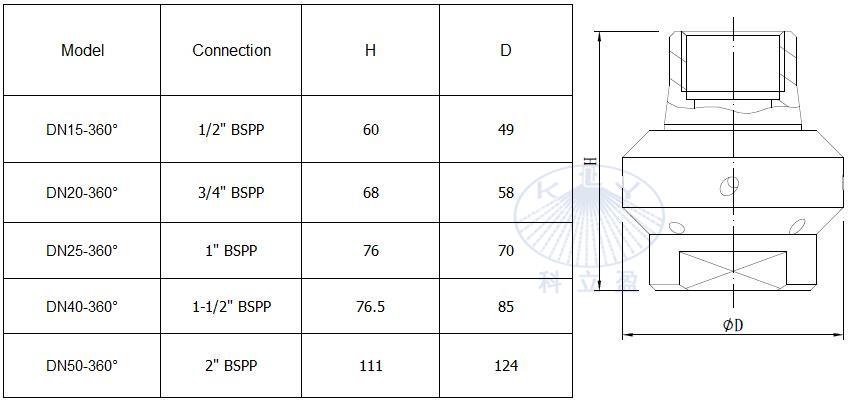

Dimension:

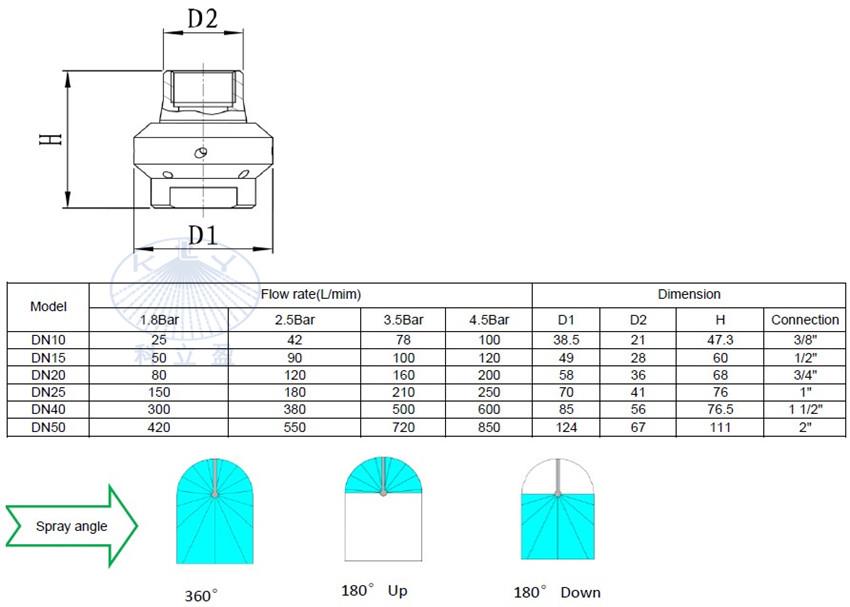

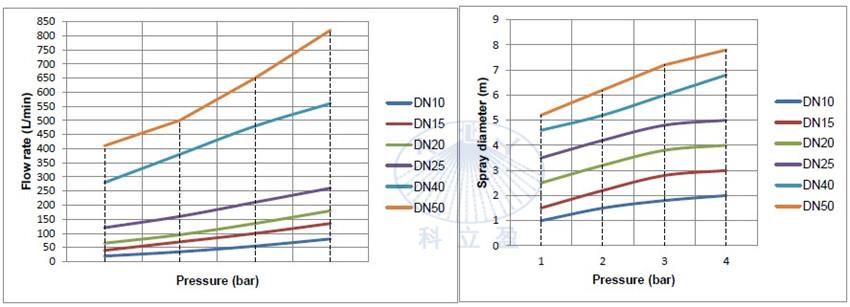

Performance data:



Working data:

Model No.:                    DN
Material:                         PTFE
Max. tank dia. :                Up to 6m in Dia.
Flow rate range:               27 to 900 l/min
Pressure range:               10 to 50 psi (.7 to 3.5 bar)
Min. tank opening size:      39 to 124 mm depending on capacity size
DN Spray coverage:       180° spraying up or down, 270° spraying up or down and 360°
Inlet conn.:                        3/8”to 2"  BSPP
Max. operating temperature: 200°F (93°C)

Features :

Rotating head driven by the flow of the rinsing liquid through multiple round spray orifices.

Solid stream sprays are precisely positioned to provide effective internal wetting and cleaning of tank surface.

Removable retainer and rotating body allows for disassembly and cleaning.

Provides 360° coverage of inside surface of tank for tank diameters up to 10 feet (3.0 m).

Self-lubricating and self-flushing design.

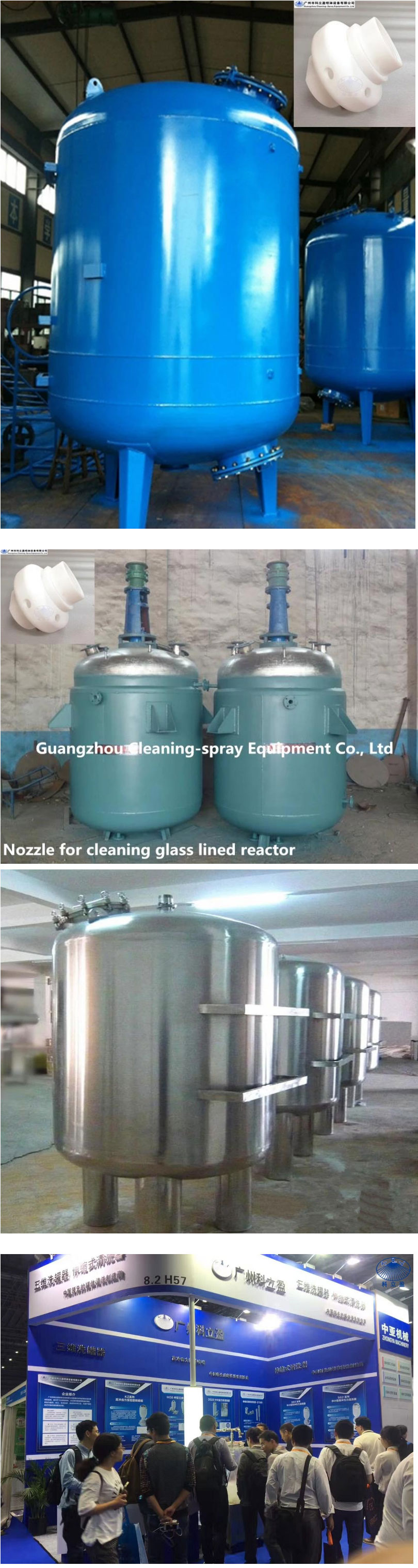

Applications:

• Broke chests
• Chemical tanks
• PCB washers
• Pharmaceutical tanks
• Process tanks
