Factory price 360 degree rotation spray nozzle

SL20 is self-rotating container cleaning head »MicroWhirly« with plain bearings is resistant to chemicals.

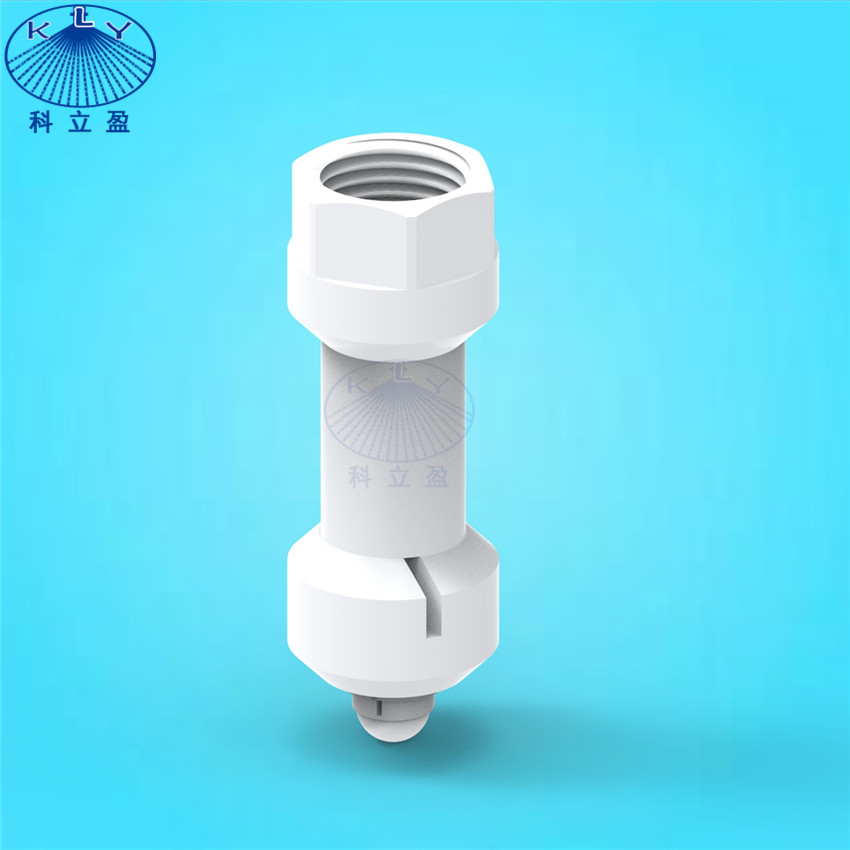

Product Photos:

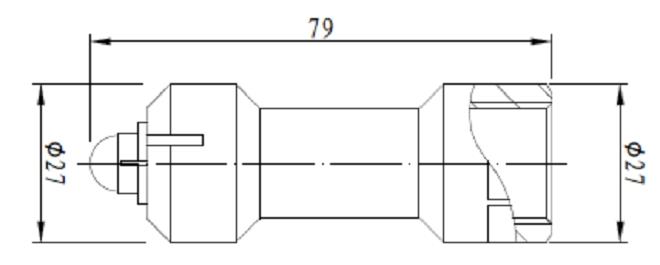

Dimension:

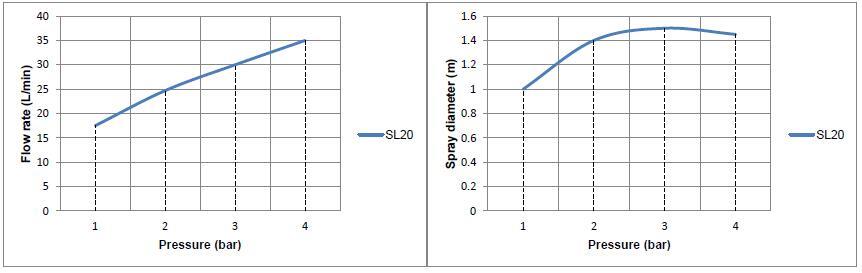

Performance data:



Working data:

Model No.:                    SL20
Material:                         PVDF
Max. tank dia. :                0.5-1.5M.
Flow rate range:               16 to 35 L/min
Pressure range:               14 to 42 psi (1 to 3 bar)
Min. tank opening size:      30 mm depending on capacity size

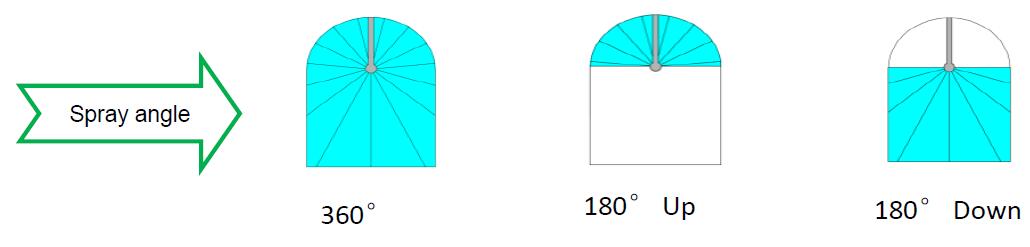

DN Spray coverage:       180° spraying up or down, 270° spraying up or down and 360°
Inlet conn.:                        1/2"  BSPP Female thread
Max. operating temperature: 200°F (93°C)

Features :

• Cleaning radius 360°

• Material PVDF / PTFE

• Connection with G ½ "internal thread

• Flow rate at 2 bar approx. 20 l / min

• Max. Container diameter for the cleaning head:
  Made of PVDF material, type 500: 1.1 m

• Pre-filtration with power filter 0.3 mm / 50 mesh

• Chemical and fertilizer resistant

• Operation in any installation position

• Material of the nozzle in stainless steel on request

Applications:
