Factory price 360 degree rotation spray nozzle

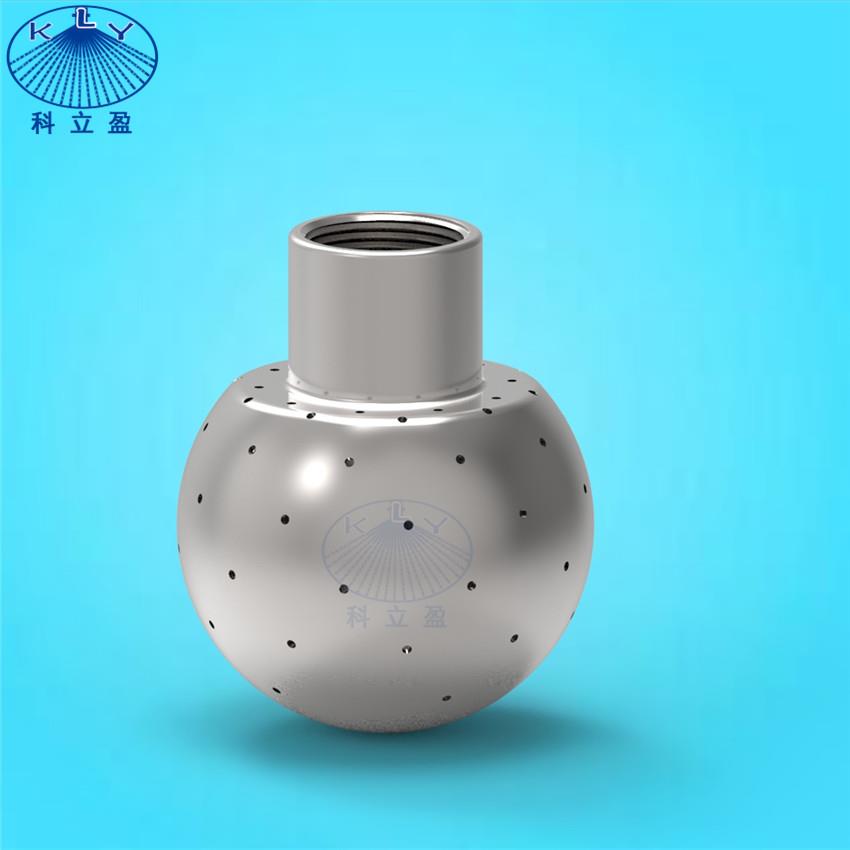

Product Photos:

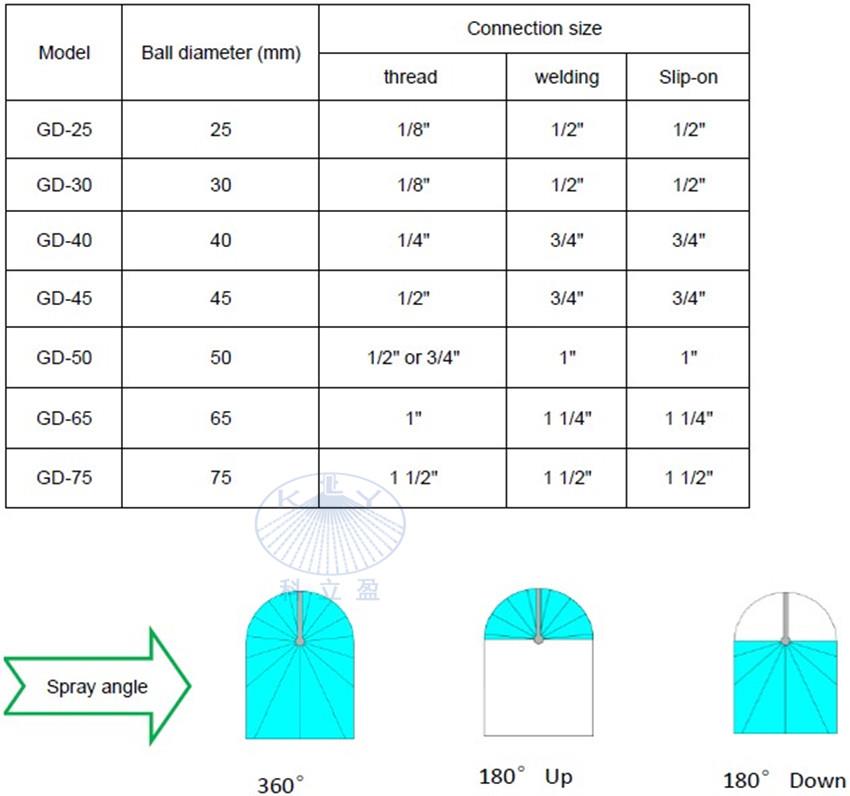

Dimension:

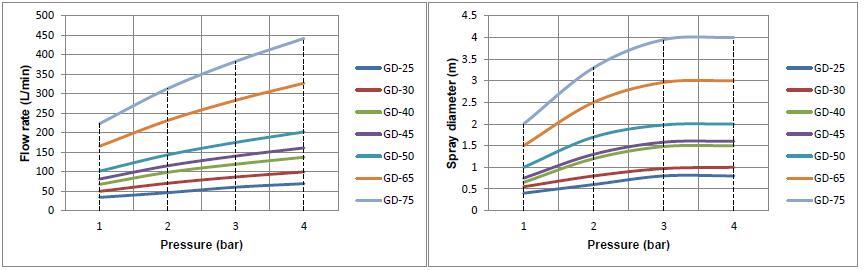

Performance data:
Working data:
Model No.: GD series spray ball
Material: 304ss, 316Lss on request
Max. tank dia. : 1- 3M.
Flow rate range: 30 to 420 L/min
Pressure range: 14 to 42 psi (1 to 3 bar)
Min. tank opening size: 25-75 mm depending on capacity size
DN Spray coverage: 360° or on request
Max. operating temperature: 280°F (130°C)
Connection type.: 1/8", 1/2", 3/4'', 1", 1 1/4", 1 1/2", 2"
thread, slip-on(tube clip), welding or clamp on request
Features :
KLY stainless steel static spray balls offer a low cost solution for the cleaning and rinsing of tanks and vessels of 1 – 3 Metre diameter.
These spray balls are a one piece design with multiple orifices and are available with either 180 degree upwards or downwards and 360 degree. The spray is produced through every orifice resulting in a low impact rinse for the tank.
-Popular spray ball design
-High flow rates
-Corrosion resisting stainless steel
-Threaded or clip-on connection
-Different sizes available
Applications:
