MultiMidget Rotary Spray Head for small tank

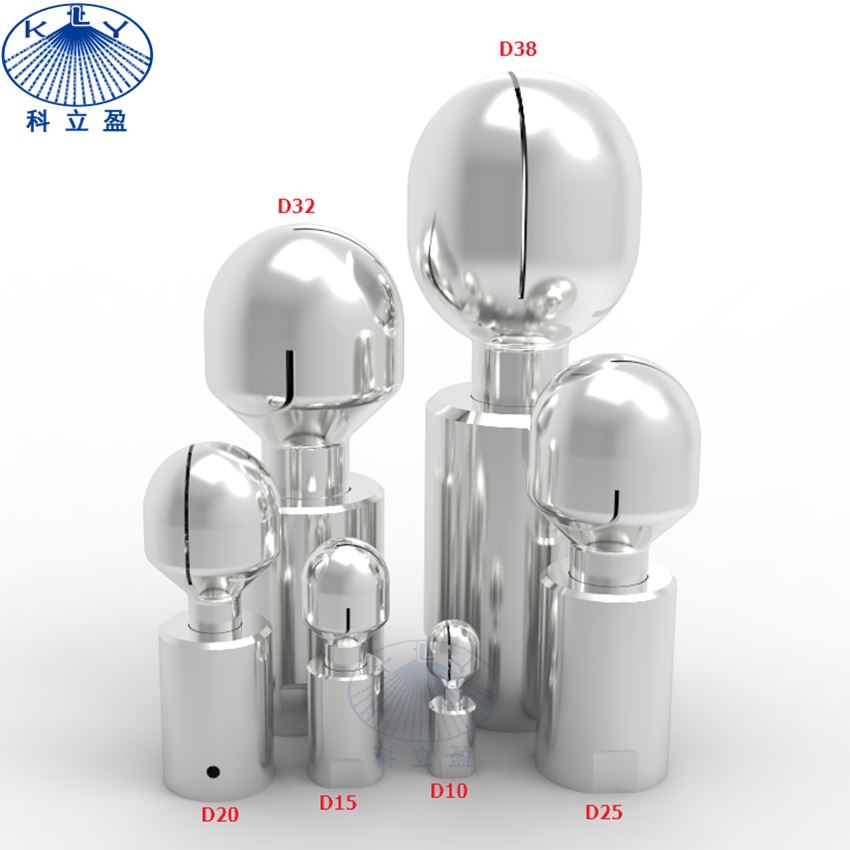

Product Photos:

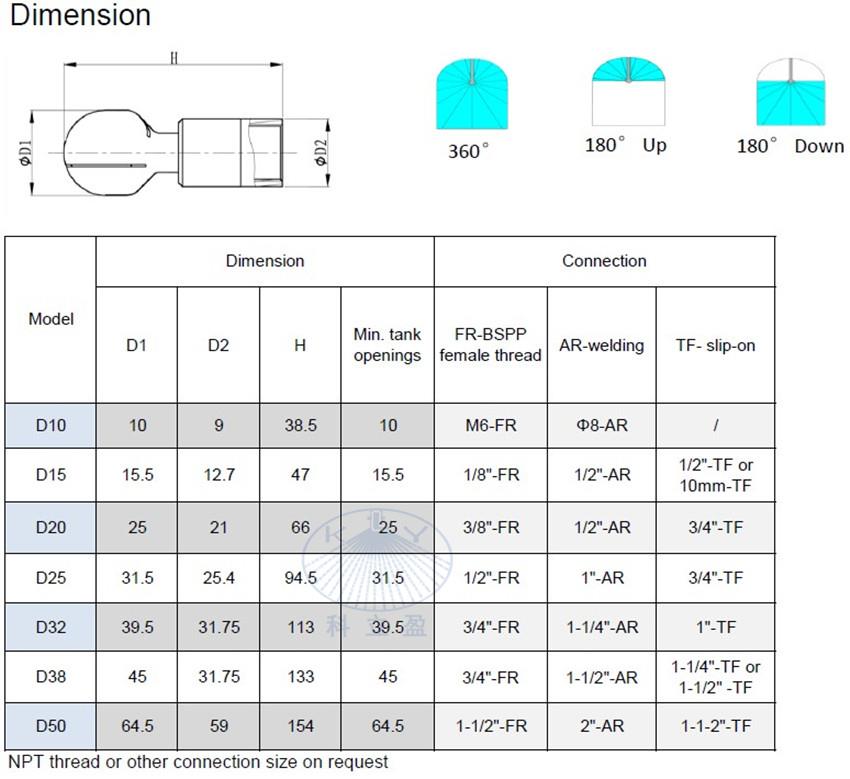

Dimension:

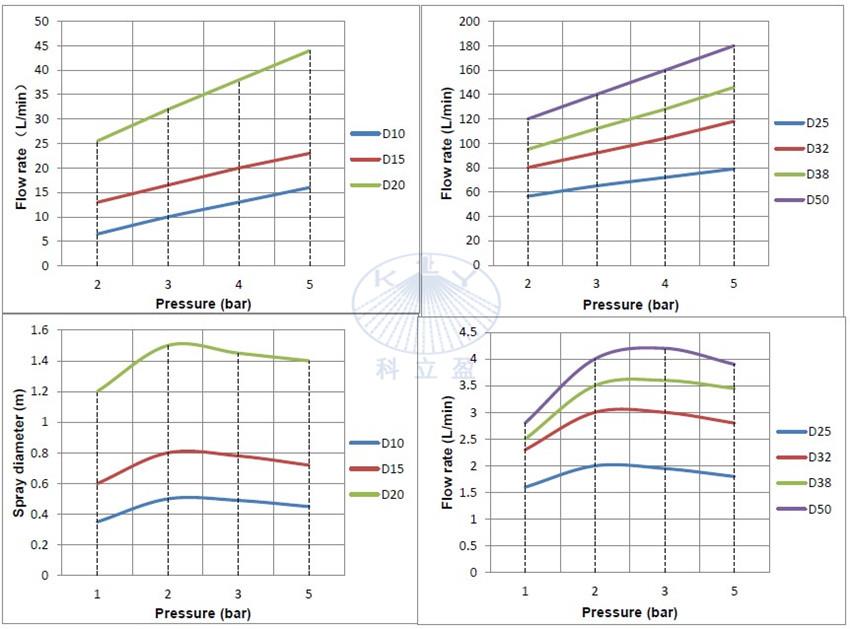

Performance data:



Working data:

Model No.:                    D series rotary spray ball
Material:                         304ss, 316Lss on request
Max. tank dia. :                0.3- 4.3M.
Flow rate range:               6 to 1 L/min
Pressure range:               14 to 42 psi (1 to 3 bar)
Min. tank opening size:      25-75 mm depending on capacity size
DN Spray coverage:        360° or on request

Max. operating temperature: 280°F (130°C)
Connection type.:            1/8", 3/8",1/2", 3/4'', 1",  1 1/2",

thread, slip-on(tube clip), welding or clamp on request


Features :

D Series  is a rotary spray head that uses cleaning media to provide coverage and impact. The device represents an effective alternative to traditional static spray balls because it uses low volumes of cleaning fluid at low pressure. The double ball bearing in the D10 rotating head makes the device suitable for all industrial cleaning applications, including tanks, reactors, vessels and other containers ranging from 0.1 m3 to 10m3 (27 – 2,700 US gallons), depending on dimensions and cleaning task.

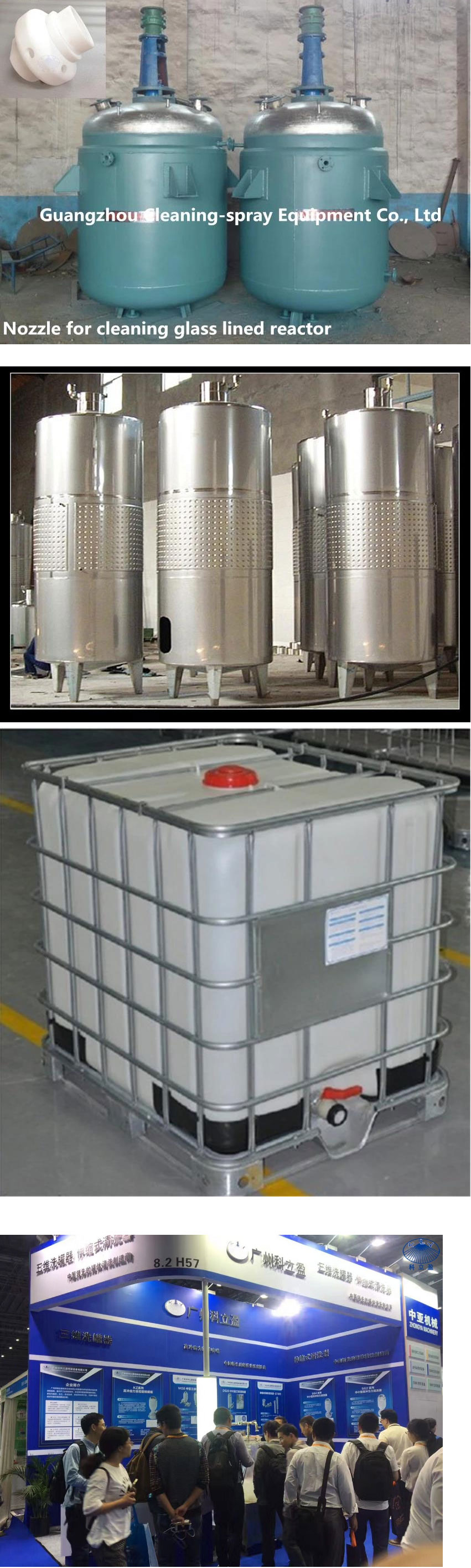

Applications:
