    Industrial Clean Field Widely Used Water Tank Cleaning Machine
    Industrial Clean Field Widely Used Water Tank Cleaning Machine
    Send Inquire
     DG5 3D rotating tank cleaning nozzle

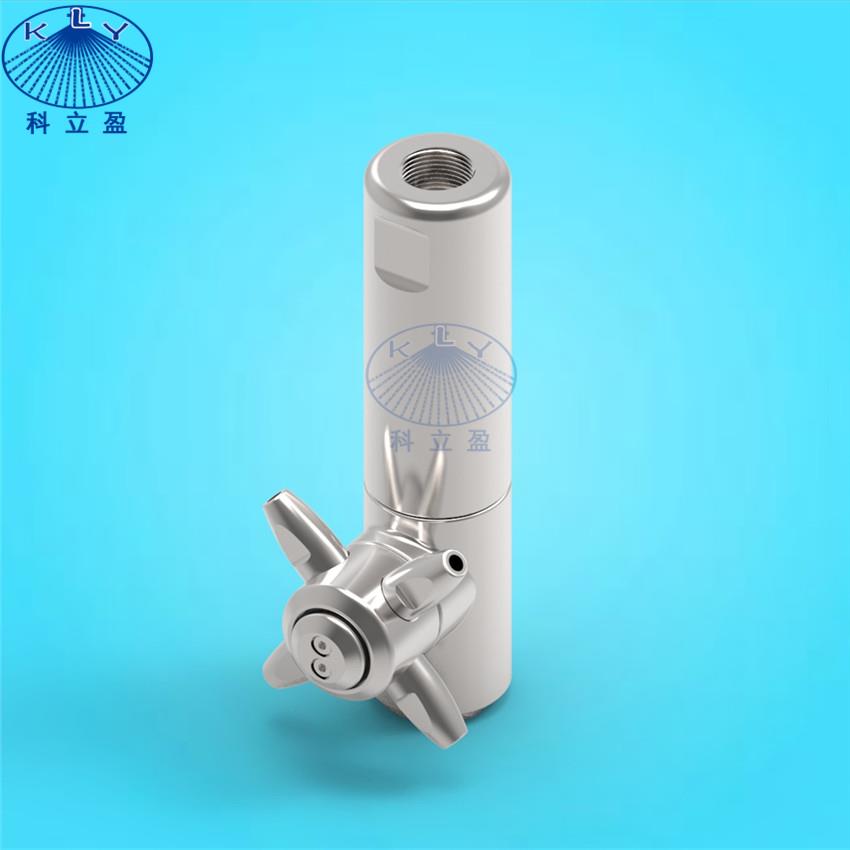

    Product Photos:

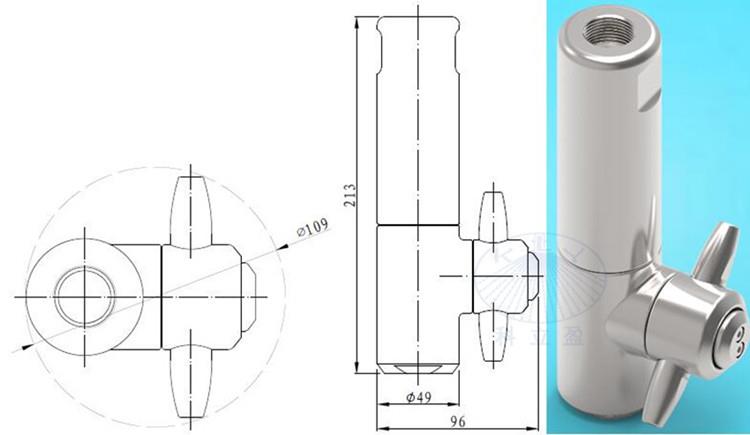

    Dimension:

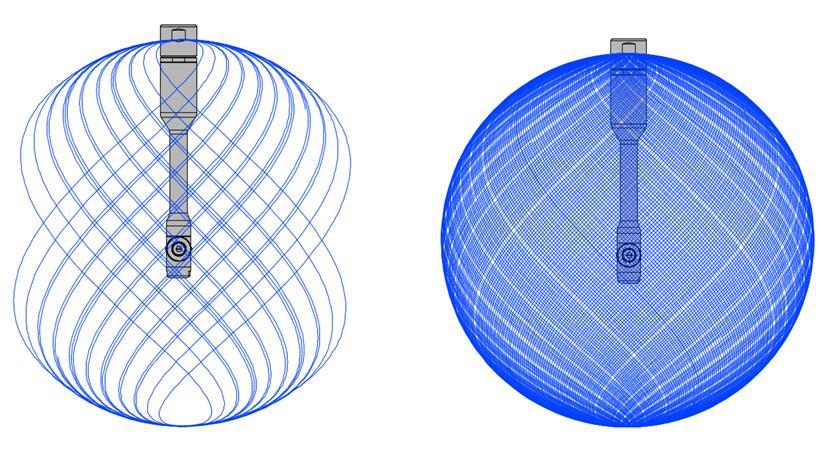

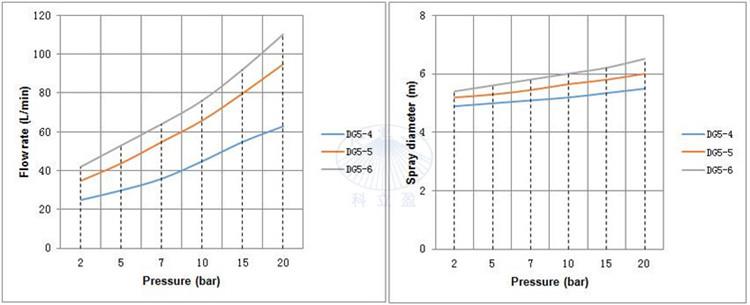

    Performance data:





    Working data:

    Material 316LSS
    Pressure 5– 20 bar / 73 – 290 psi
    Volume flow rate

    25-176L/min

    Working temperature cleansing medium: max. 95°C / 203°F
    Cleaning radius max. 3 m
    Wetting radius max. 3.5 m
    Connection

    3/4″ BSP

    Insertation opening min. Ø 100 mm


    Features :

    DG5 – The new powerful and efficient internally geared media driven jet cleaner

    Compact cleaning unit which produces high impact, long range jets which oscillate through 90 deg while tankwasher continually indexes around the central axis. Only 5% of cleaning liquid is used to drive the operating mechanism so 95% passes directly to the nozzles producing very high impact jets.

    Ideal where rigorous standards of hygiene and product purity are essential
