DG5 3D rotating tank cleaning nozzle

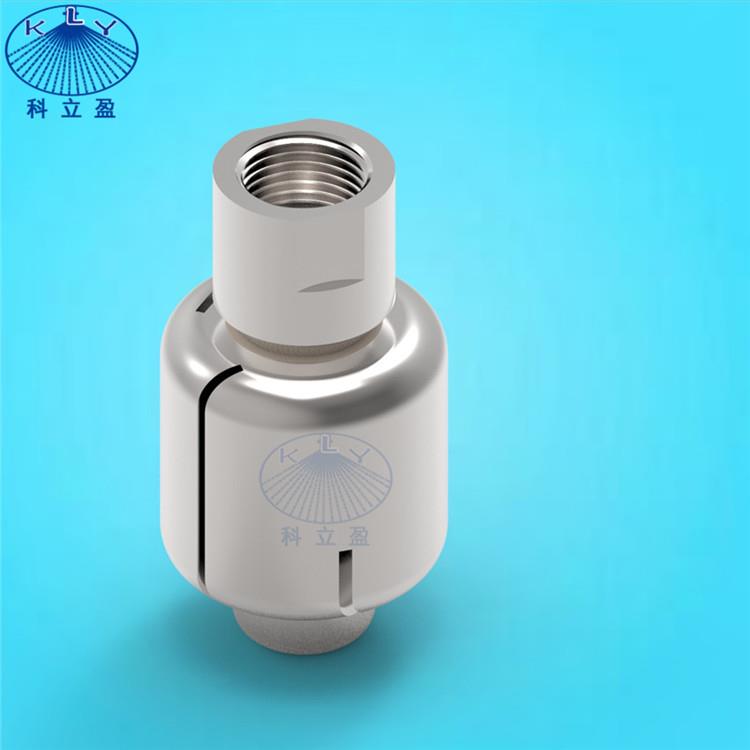

Product Photos:

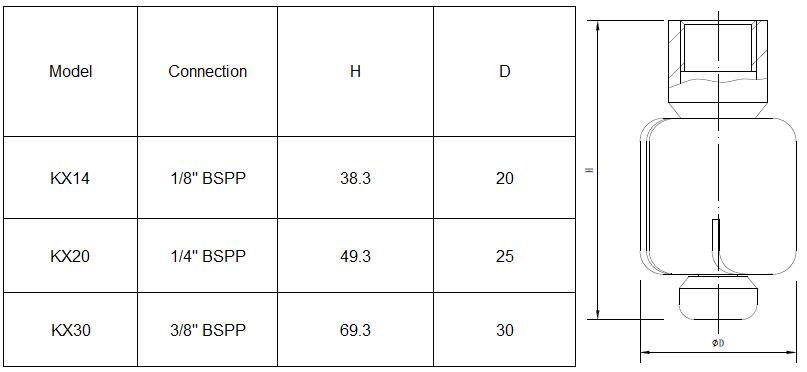

Dimension:

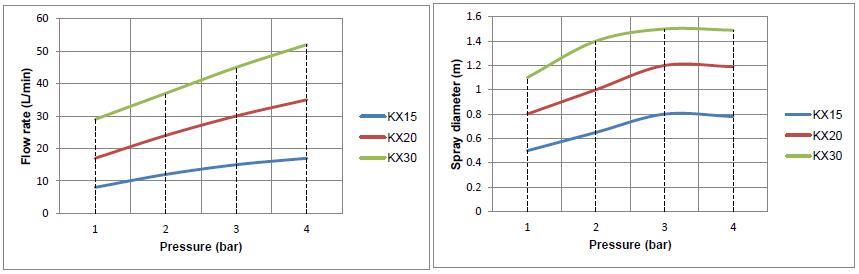

Working data:

Material: 316SS, 316L

Spray angle: 360°

maximum. Tank diameter: 1.0 - 1.5 meters

maximum. Working temperature: 140 ° C

Working pressure: 1 - 2 bar

Consumption: 5 - 55 l / min (depending on model)

Connection: 3/8"BSPP, 3/4" sliding

Installation: at any location

Features :

The flow of detergent causes the KX head to rotate and create a swirling spray pattern over the entire surface of the container or container. The KX series is designed for small boreholes and small tanks. It has an excellent wash impingement jet, which acts as a lubricant and rotational force due to the use of sliding bearings.


Application

Used for cleaning barrels, drums, cans, tankers,keg, for example, brewing and beverages, food industry, household chemicals and personal care products, health care, biotechnology and chemical industries.
