DG5 3D rotating tank cleaning nozzle

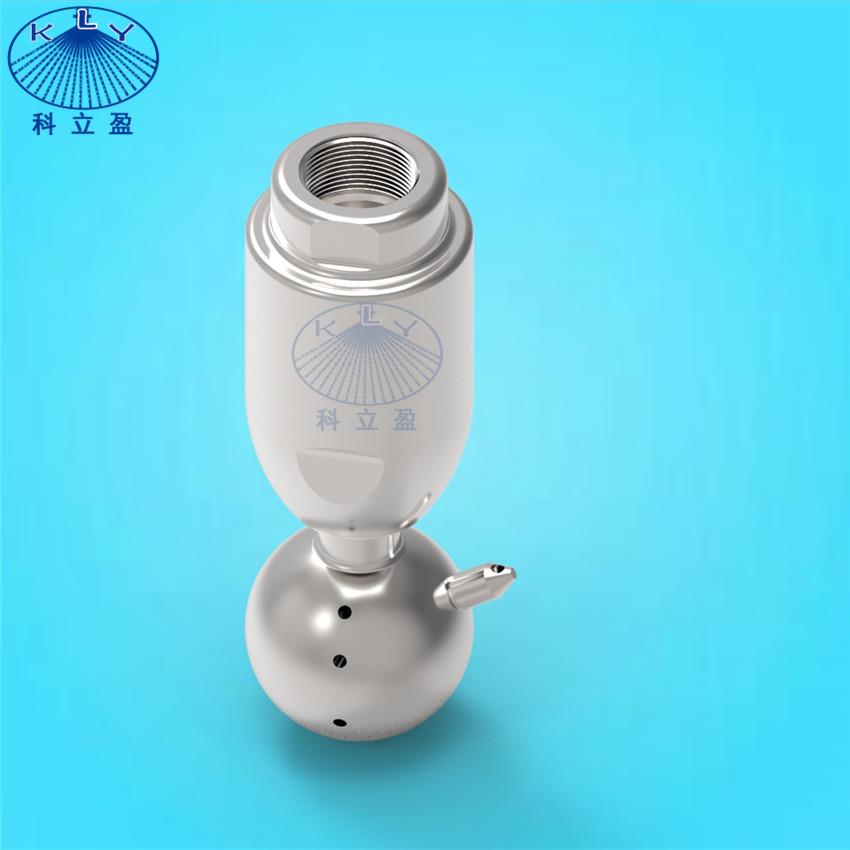

Product Photos:

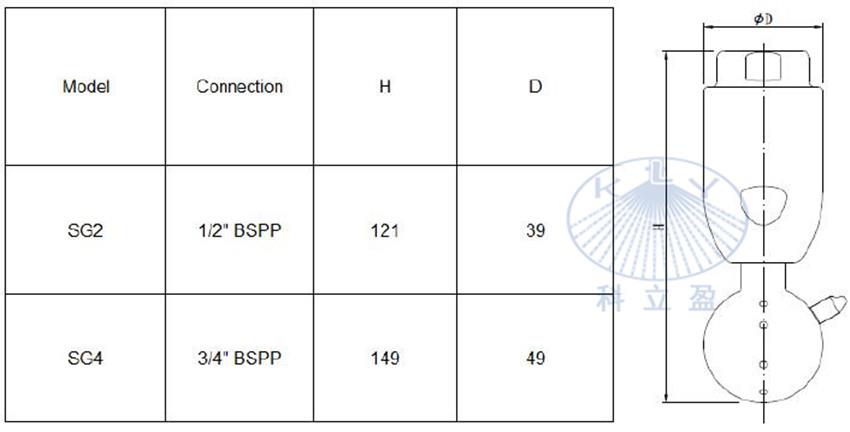

Dimension:

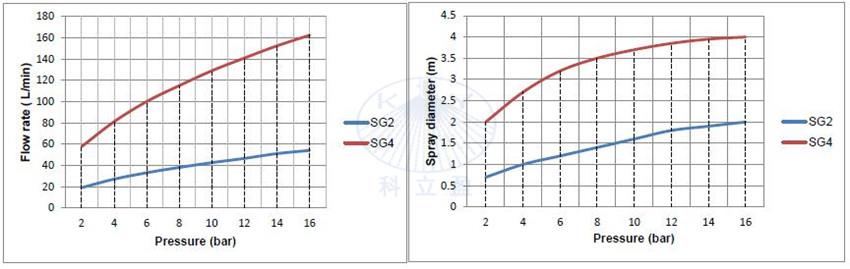

Performance data:



Working data:

Material:  316LSS

Spray angle: 360°

maximum. Tank diameter: 2 - 3.5 meters

maximum. Working temperature: 95 ° C

Working pressure: 2 - 15 bar

Consumption: 50 - 155 l / min (depending on model)

Connection: 3/4"BSPP

Installation: at any location

Features :

The momentum of the liquid flow is used to drive the nozzle's spray head while constant rotating speed is maintained. Unlike conventional fluid-driven nozzles where cleaning efficiency decreases as pressures increase, the SG4 rotary tank washing nozzle increases its cleaning impact as the fluid pressure increases – which can translate into an increase in cleaning impact up to four times higher than a conventional rotating nozzle

The momentum of the liquid flow is used to drive the nozzle's spray head while constant rotating speed is maintained. Unlike conventional fluid-driven nozzles where cleaning efficiency decreases as pressures increase, the SG4 rotary tank washing nozzle increases its cleaning impact as the fluid pressure increases – which can translate into an increase in cleaning impact up to four times higher than a conventional rotating nozzle.

High-impact spraying means liquid consumption is minimized and cleaning efficiency is improved. The limited rotational speed of the nozzle makes it highly useful for cleaning, sanitizing and foaming applications.


Application

Used for cleaning barrels, drums, cans, tankers,keg, for example, brewing and beverages, food industry, household chemicals and personal care products, health care, biotechnology and chemical industries.
