DG15 3D rotating tank cleaning nozzle

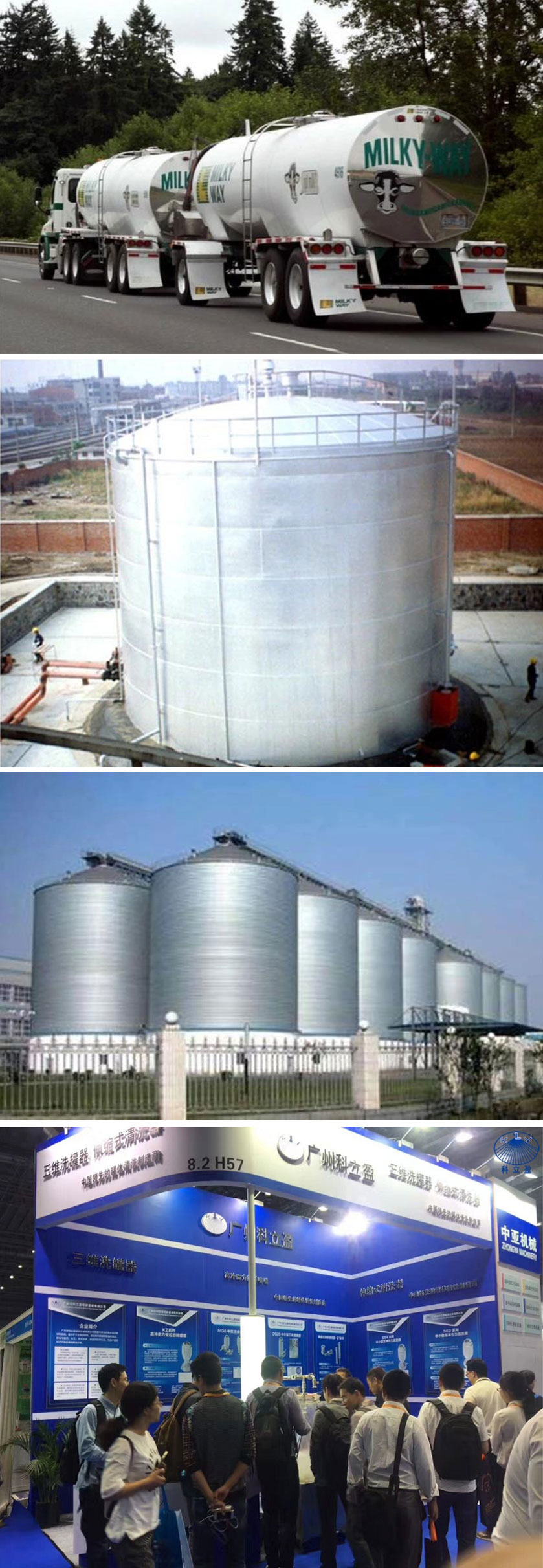

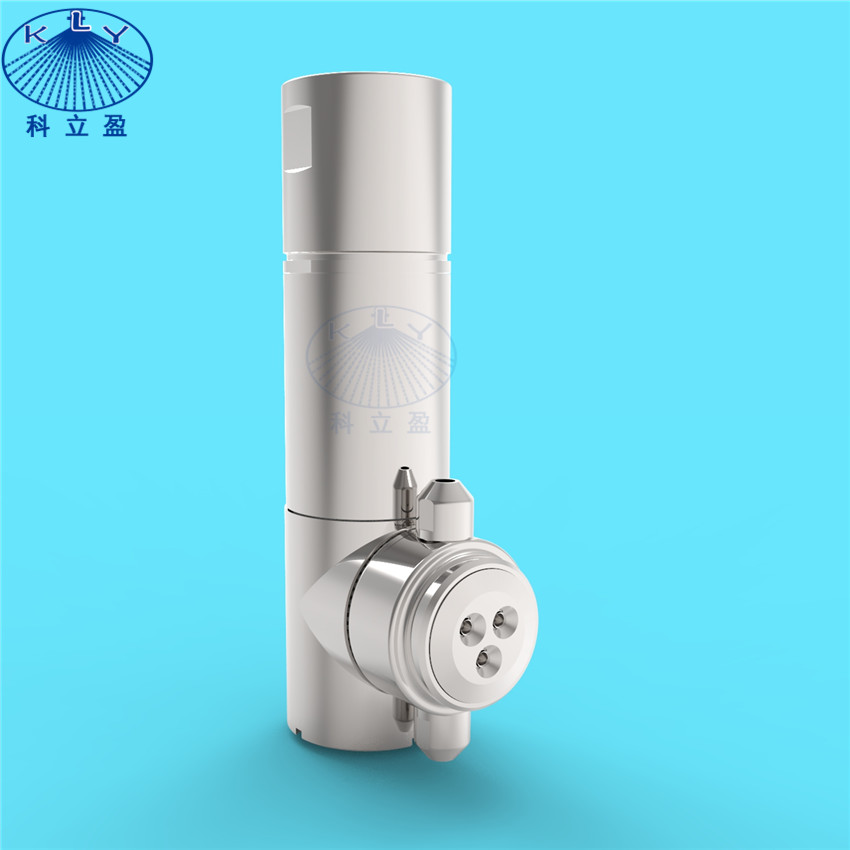

Product Photos:

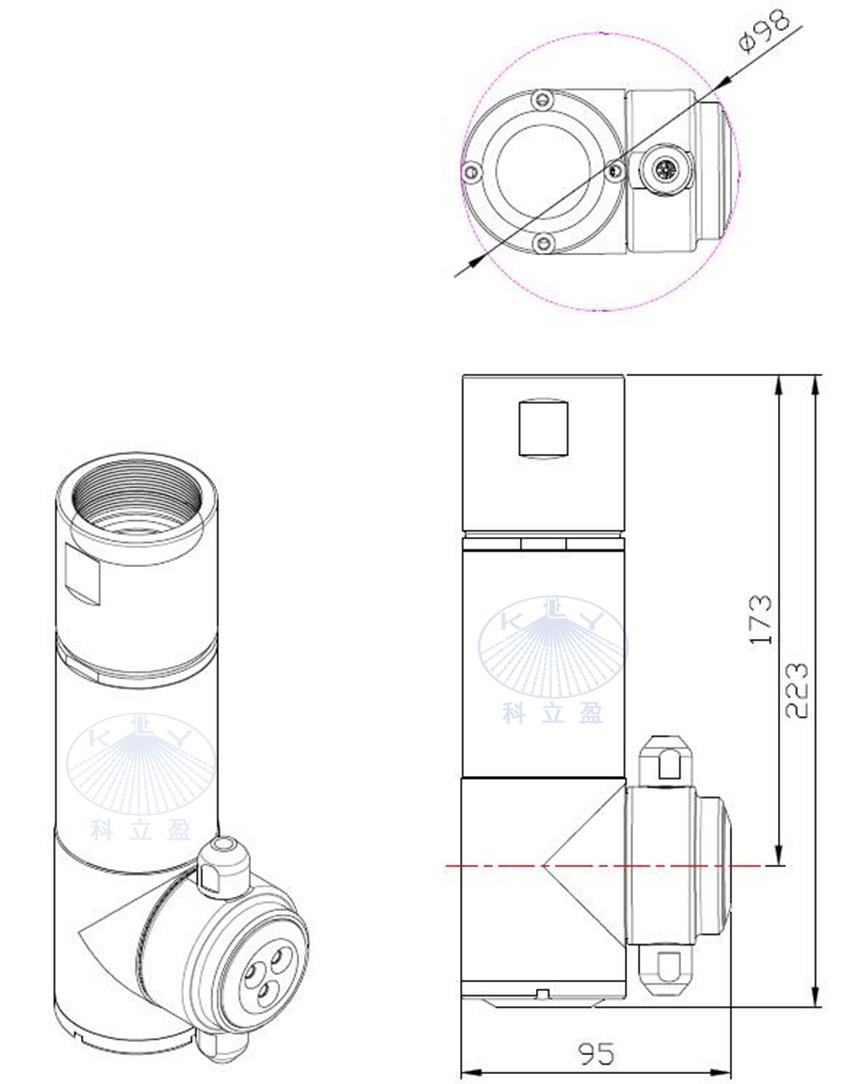

Dimension:

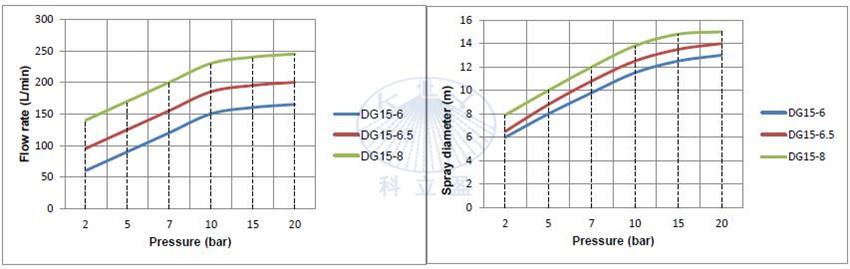

Performance data:



Feature:

DG series has been specifically engineered for use in cleaning large storm water retention tanks. These machines are powerful, robust and are based on technology used for decades in cargo ship / tanker cleaning applications. These machines can be deployed in cold, dirty and corrosive environments with little or no maintenance requirements. They will operate reliably and have a sufficient jet length to clean even the largest of storm tanks. These features also make them suitable for automated wet well / pump station cleaning. Key product features -Entirely fluid driven meaning no external power source is required - Fully sealed gear box allowing for fluids to be used as the cleaning media e.g. final effluent - Powerful jets up-to 15 metres in length - Stainless steel rugged design means almost no maintenance is required

Spray characteristics:

Flow rates: 47 - 220 l/min

Working Pressure: 4 - 20 bar

Jet length: Up to 15 metres

Wash pattern: 360°

Cycle times: 7 - 15 minutes

Materials: Housing: 316L

Nozzle Head: 316L

Gears: PEEK + 316 SS

Weight: 3.2Kg
