DG15 3D rotating tank cleaning nozzle

DG15-4 3d Rotating Water Tank Jet Nozzle , Rotary Jet- Compact Model

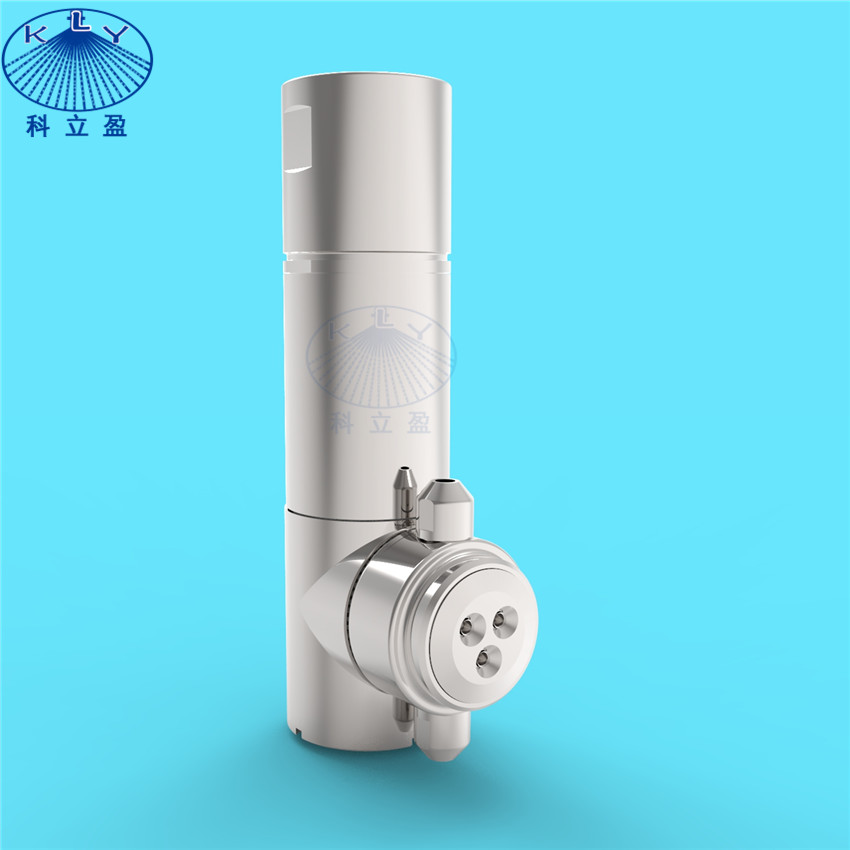

Product Photos:

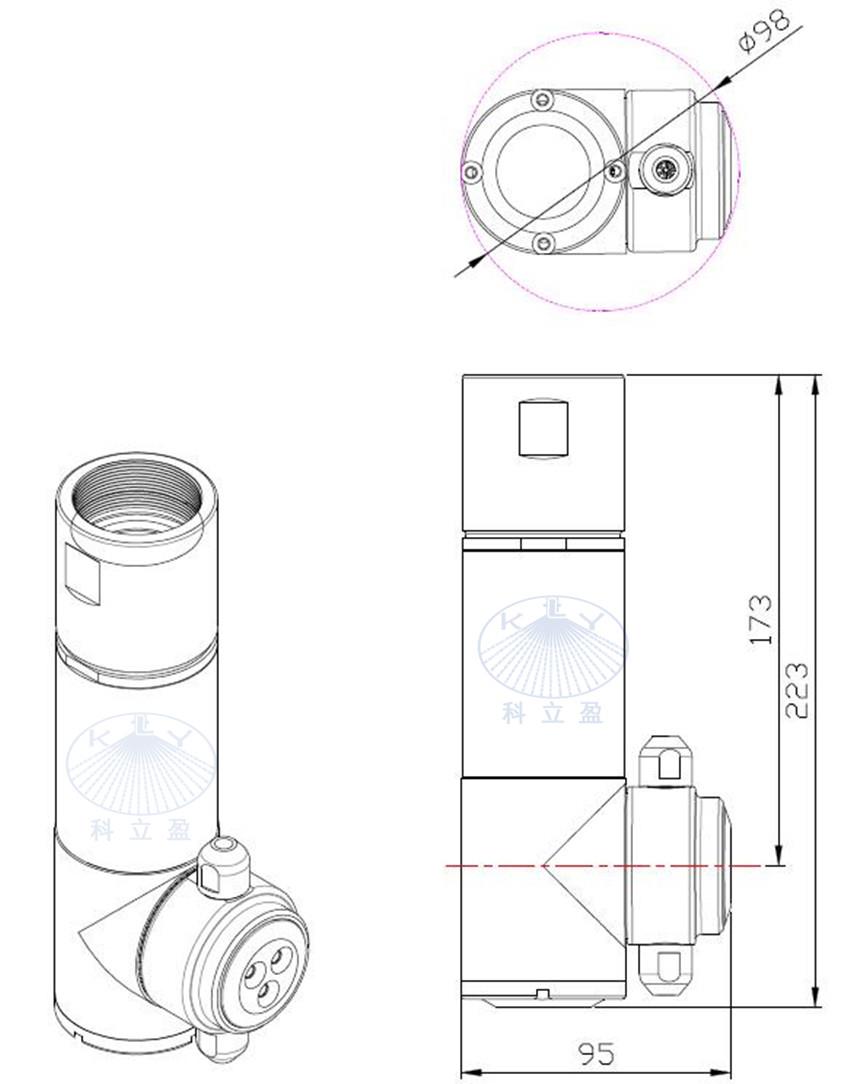

Dimension:

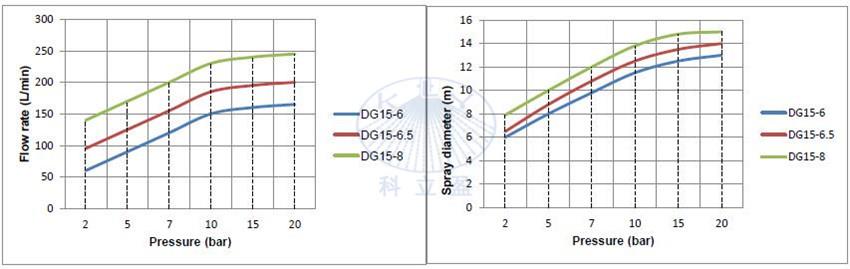

Performance data:



DG15-4 TANK CLEANING MACHINES

USAGE

Cleaning of Storage Tanks, Drum, Pipe Barrel, Container, Enclosed Space, Totes, IBC, Pressure / Process Vessel, etc.

APPLICATION

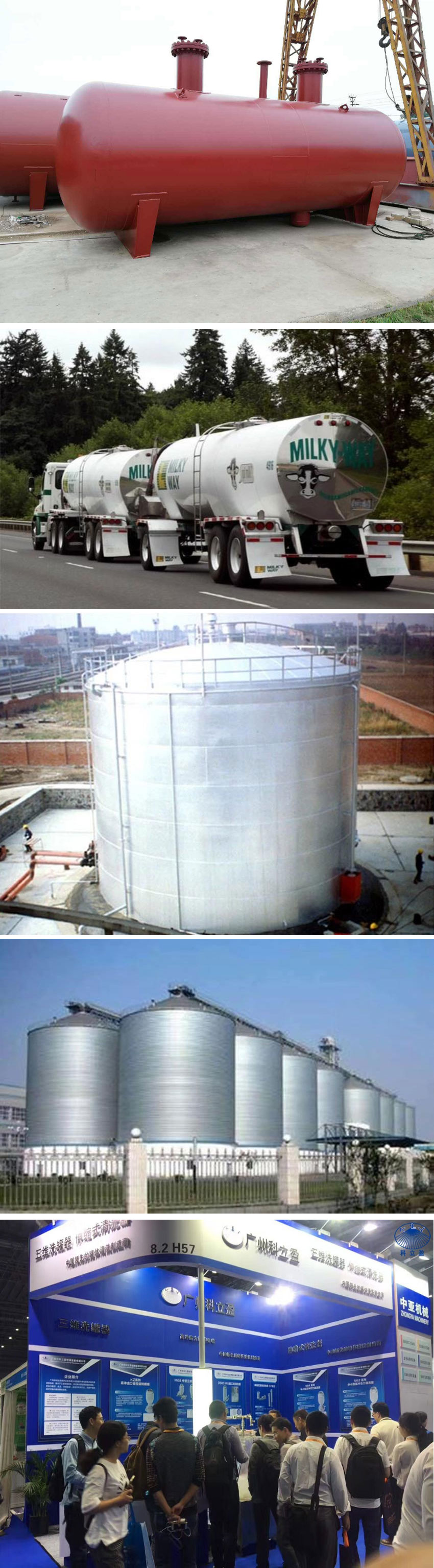

Marine Tanker, Storage Tank Farm / Terminal, Lubricant Plant, Food Production, Wineries & Breweries, Pharmaceutical Manufacturing, Rinsing, Dairy, Chemical Processing /Distribution, Passivation, Refining, Pulp & Paper, Paint, Ethanol, Bio-Fuels, etc.

OPERATING PRESSURE

Up to + 290 PSI

OPERATING TEMPERATURE

up to + 130 Deg C

MATERIAL

316L Stainless Steel

TYPE

Dual or Four Nozzle(Orifice6MM/6.5MM/8MM) ,  360 Deg Pattern

Spray characteristics:

Flow rates: 47 - 220 l/min

Working Pressure: 4 - 20 bar

Jet length: Up to 15 metres

Wash pattern: 360°

Cycle times: 7 - 15 minutes

Materials: Housing: 316L

Nozzle Head: 316L

Gears: PEEK + 316 SS

Weight: 3.2Kg
