KZ75 spray ball in reactor in ethoxylation reactor

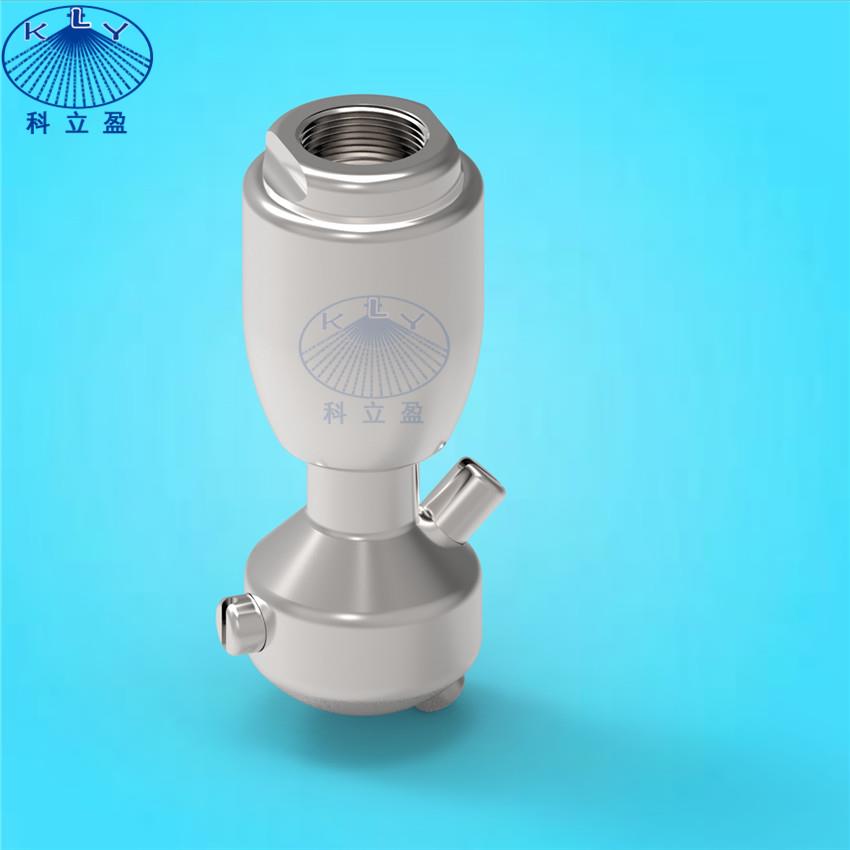

Product Photos:

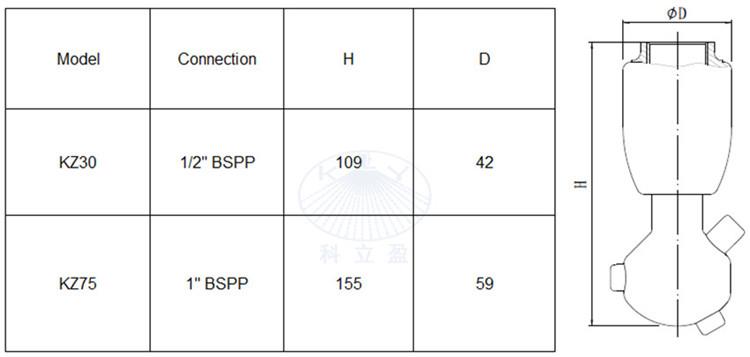

Dimension:

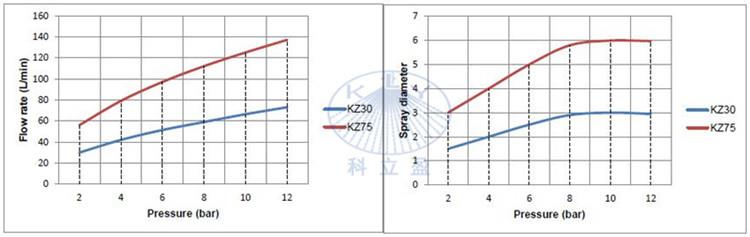

Performance data:



Spray characteristics:

Flow rates: 50-100 l/min

Working Pressure: 3 - 20 bar

Jet length: Up to 5 metres

Wash pattern: 360°

Materials: Housing: 316LSS

Nozzle Head: 316LSS

Weight: 1.4KG

Feature:

The Liquid flow powers the head by an internal turbine. Either a gear reduction or a hydraulic brake is used to control the rotation. Hence the producted droplets are bigger and hit the tank wall with higher velocity. This keeps the speed of the head within its optimal range across a wider span of pressures, andthe nozzles develops more pwerful spray.
