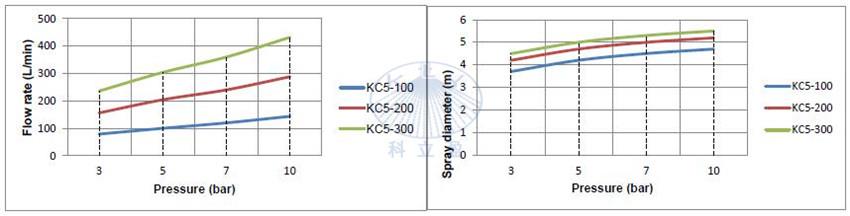

| Model |
Max.diameter (m) |
Pressure (bar) |
Flow rate (L/min) |
Connection
|
tank opening (mm) |
| KC5-100 | 3.7-4.7 | 3-10 | 80-145 | 3/4"BSPP | 95 |
| KC5-200 | 4.2-5.2 | 3-10 | 156-288 | 1"BSPP | 95 |
| KC5-300 | 4.5-5.5 | 3-10 | 236-432 | 1"BSPP47 | 95 |
Material 316LSS
Connection Female Thread

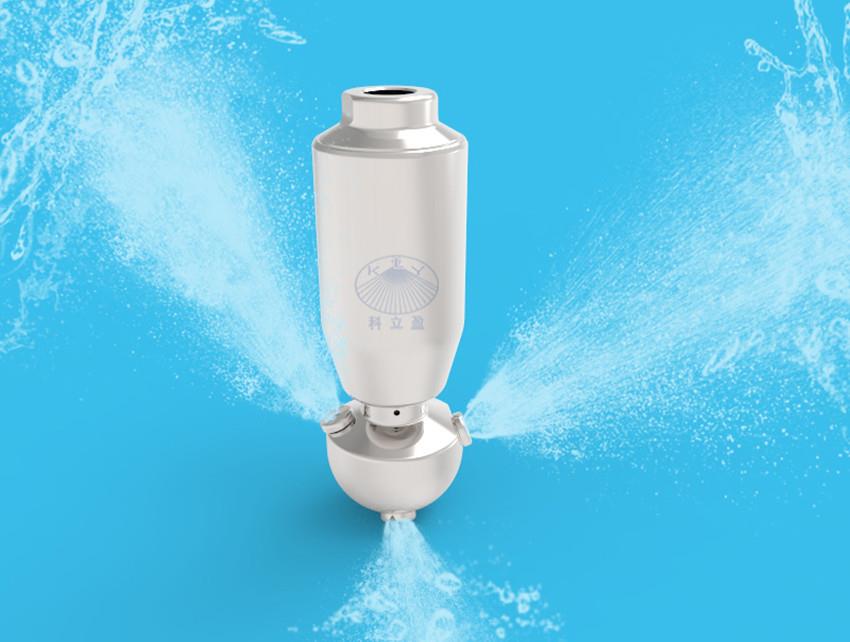

Spray pattern 360 degree
Cleaning diameter 3-5m
Pressure 3-10bar
Flow rate 80-432/min
Features :
Design Features:

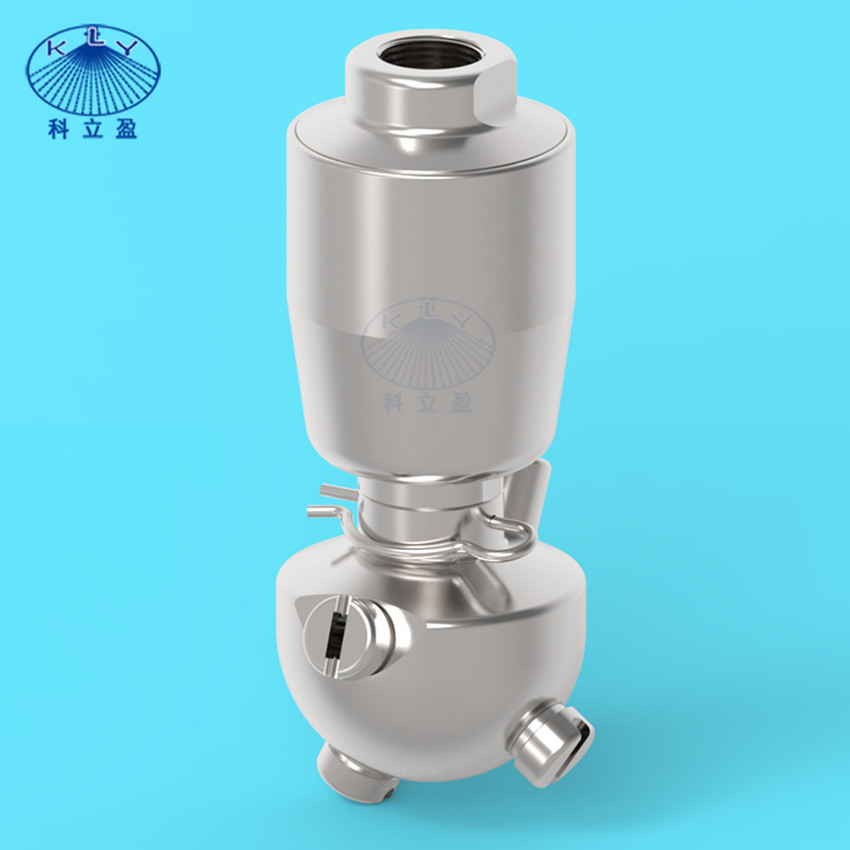

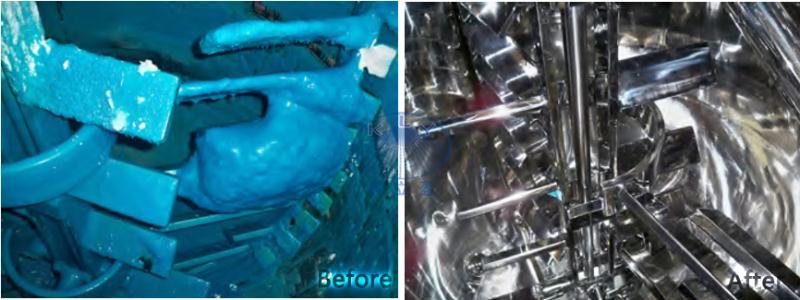

KC5 Tank Washing Nozzle assembly provides thorough cleaning to meduum size dimensions of tanks and vessels.

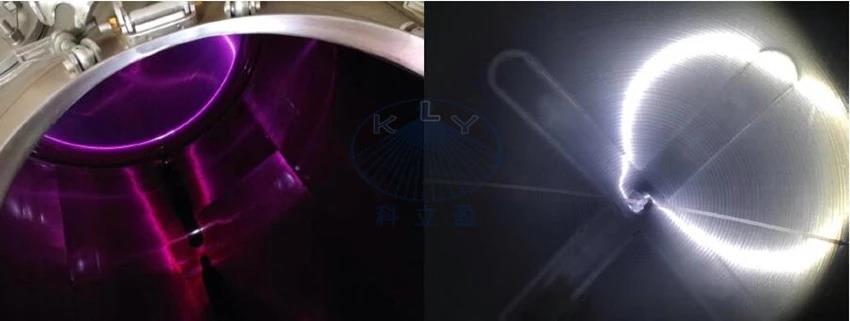

It offer complete spray coverage of the whole interior surface of the tanks at pressures up to 10bar. KC5 Tank washing Nozzle is constructed of 316 stainless steel.

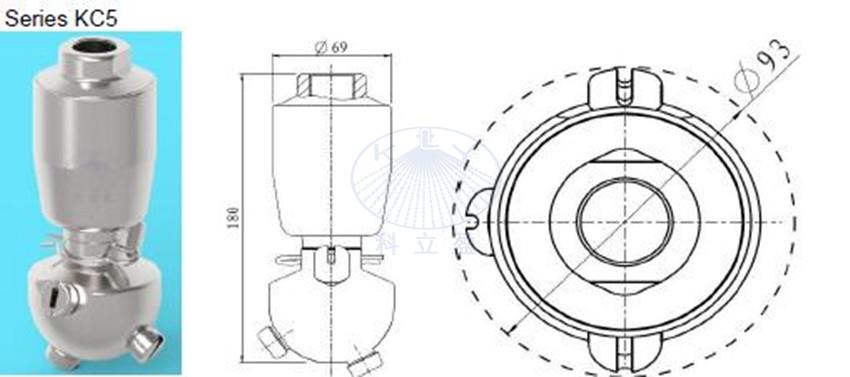

KC Tank Washing Nozzle assembly features a large flow capacity for cleaning tanks up to 5 meters in diameter. The flow rates can be changed by using three different siae spray nozzle. The nozzle can pass through tank mouth of 95mm of larger in diameter.
We will do everything possible to please you.
Applications:

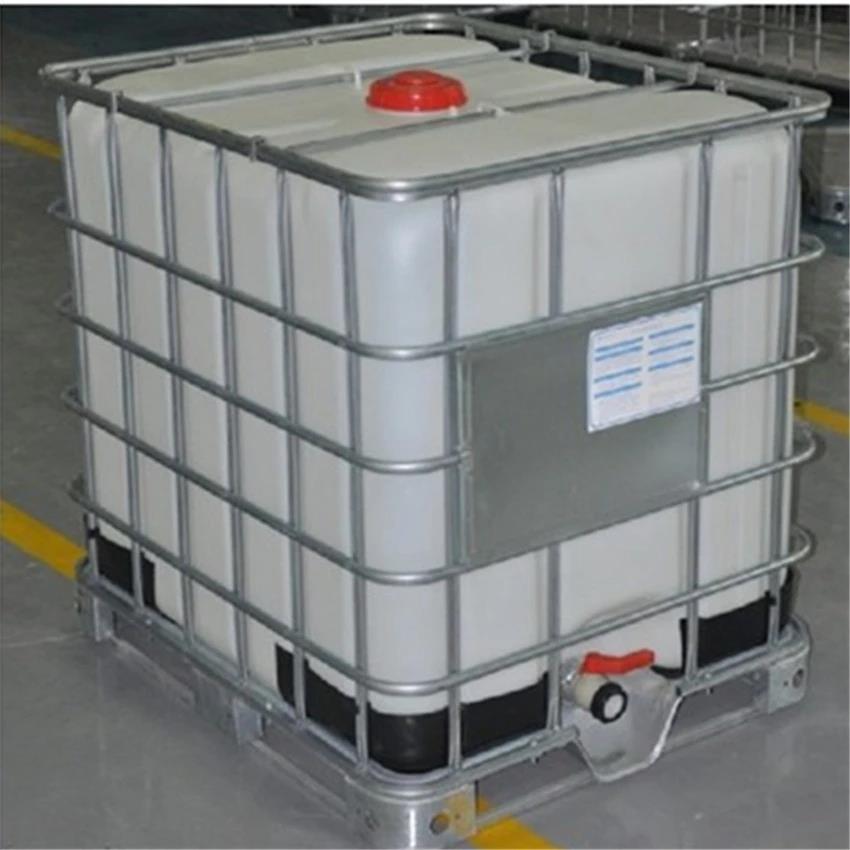

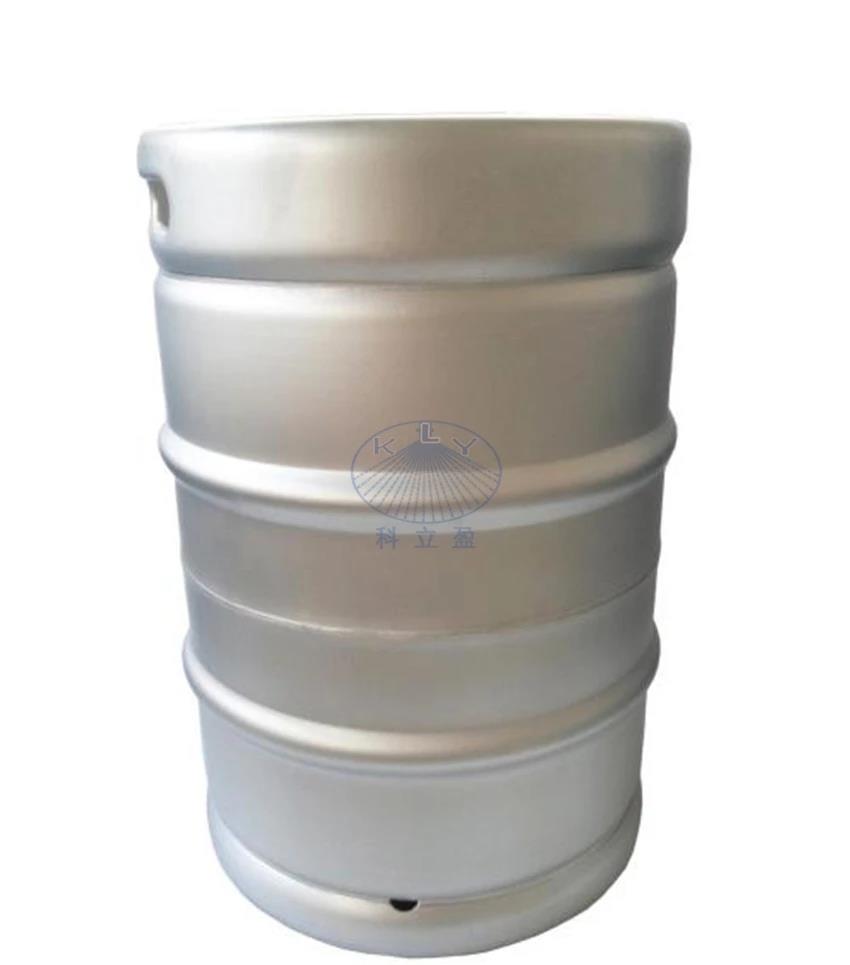

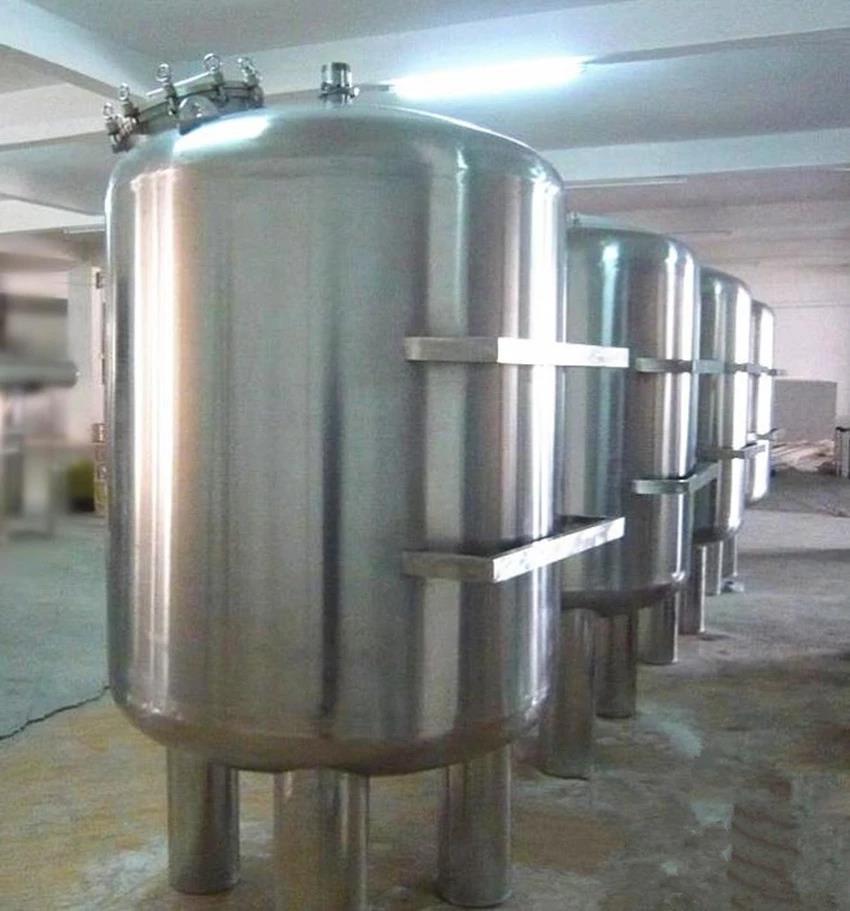

KC5 High impact spray ball are well suited for medium sized tanks, such as dairy , food, pharmaceutical, beer, chemical, industrial fermentation industry
