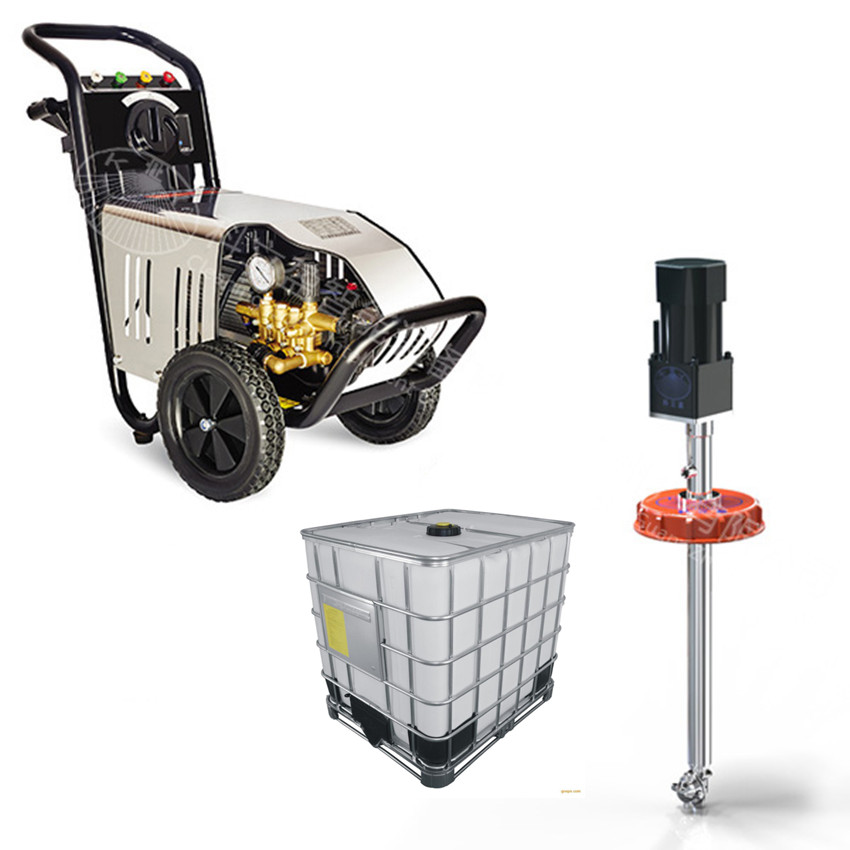

High pressure tote cleaning machine, IBC tote cleaning machine
1.Core Technical Specifications
Item | Specification | Remarks |
Model | HC-2315-IBC | Fits 275/330 Gallon IBC Totes |
Main Material | 316L Stainless Steel | Meets Food & Pharmaceutical Hygiene Standards |
Core Power | 7.5 KW | 380V/50Hz Industrial Power Supply |
Pressure Performance | Operating Pressure: 50-100 barMax Pressure: 150 bar | Adjustable for Different Residues |
Cleaning Efficiency | 2-6 Minutes per Tote | 3-7x Faster Than Manual Cleaning |
Cleaning Coverage | 360° 3D Rotating Spray Nozzle | No Dead Spots (Covers Top & Corners) |
Connection Type | 3/8''-2'' Thread or Flange Connection | Compatible with Standard IBC Interfaces |
Operating Temperature | Standard Version ≤60℃ | Suitable for Water-Based/Alkaline Cleaners |
Equipment Weight | 120kg | Easy for Workshop Mobile Deployment |
Core Components | Motor, High-Pressure Pump, Filter, Cleaning Nozzle, etc. | 1-Year Whole Machine Warranty |
High-Efficiency Cleaning System
Adopts 3D rotating spray technology, with water impact force 40% higher than traditional IBC tote cleaning machines, effectively removing stubborn residues like paint and latex.
Recirculating cleaning design: Efficiently removes oily residues via alkaline solution circulation loop, improving chemical utilization by 50%.
Compliance-Oriented Design
316L stainless steel body + food-grade seals, compliant with EN ISO 14159 hygiene standards, suitable for pharmaceutical/FDA-certified scenarios.
Full-drainage structure (no liquid accumulation dead spots) meets GMP sterile production requirements.
3.Economic Performance
Indicator | Manual Cleaning | HC-2315-IBC High Pressure IBC Washer | Optimization Rate |
Time per Tote | 12-15 Minutes | 2-6 Minutes | ≥70% |
Water Consumption | 120-150L/Tote | 100-120L/Tote | 17% |
Cleanliness | 50-80% | 100% No Visible Residues | ≥50% |
Labor Requirement | 2-3 Workers | 1 Worker Operation | 67% |
Source: Industry Cleaning Efficiency Comparison Standard |
Chemical Industry: Removes solvent, acid-alkali residues; prevents cross-contamination
Food & Pharmaceutical: Complies with hygiene standards; suitable for cleaning juice, pharmaceutical residues
Petroleum Industry: Recirculating cleaning technology efficiently removes crude oil/lubricating oil stains
Personal Care: Cleans emulsion, cream containers with no chemical residues
Deep cleaning of IBC totes before refurbishment and resale
Compliant treatment of hazardous waste containers
Rapid cleaning and reuse of production line turnover totes
Quarantine disinfection pretreatment of export IBC totes
Standardized Process
Drain residual liquid → Pre-rinse → Chemical recirculating cleaning → High-pressure water rinsing → Disinfection (optional) → Drying; the whole process can be set with one key via the control panel.
Quality Assurance
Provides outgoing inspection videos and core component warranty services
Supports customization of high-temperature version (≤120℃) and explosion-proof configuration
Based on 50 totes cleaned per day:
Annual labor cost savings: (3 workers - 1 worker) × 300 CNY/day × 250 days = 150,000 CNY
Annual water/electricity/chemical cost savings: (135L - 110L)/tote × 50 totes × 365 days × 5 CNY/ton ≈ 23,000 CNY
Estimated ROI Period: 6-8 Months
6. An IBC tote cleaning machine video has been provided for reference purposes. Please note that product details are subject to the physical product; for different cleaning scenarios and requirements, we offer customized design options for the equipment style.

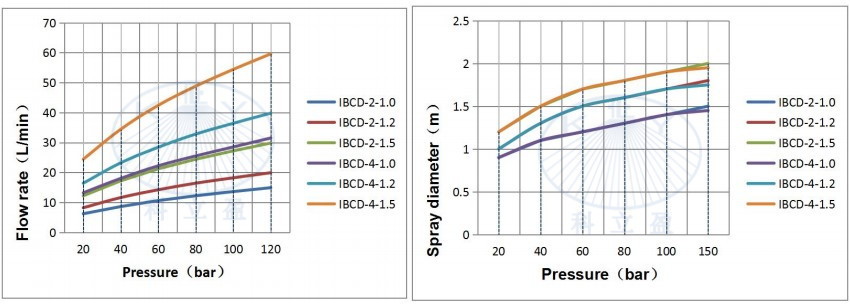

Performance data of IBC tank cleaning nozzle:
Cleaning effect of IBC cleaning machine:
